Air conditioningControl system
CONTROL SYSTEM
In conjunction with the Engine Control Module (ECM), the air conditioning control system operates the condenser fan, cooling fan and compressor clutch to control the operation of the refrigerant
recirculated air motor. The control system comprises of two control switches, a trinary pressure switch, a thermostat and a relay module.
system. The control system also operates the

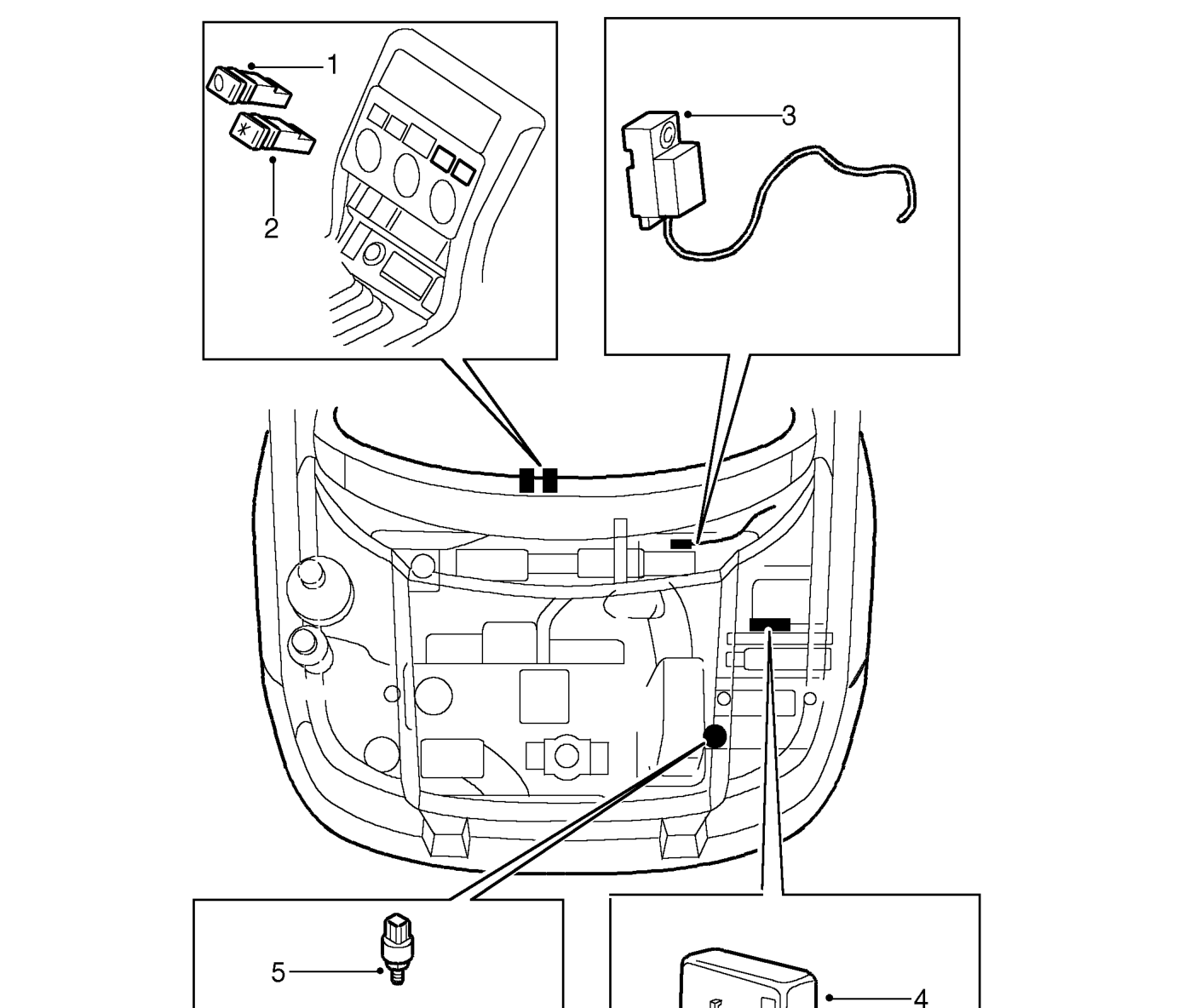

Control system components (RH drive shown, LH drive similar)
- Fresh/Recirculated air switch
- Air conditioning switch
- Thermostat
- Relay module
- Trinary pressure switch
