Land Rover Freelander Workshop Manual (1998-2000)14 · Clutch
14 · Transmission

Clutch (Clutch components): Description and operation

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Description and operation › Clutch components
ClutchClutch components

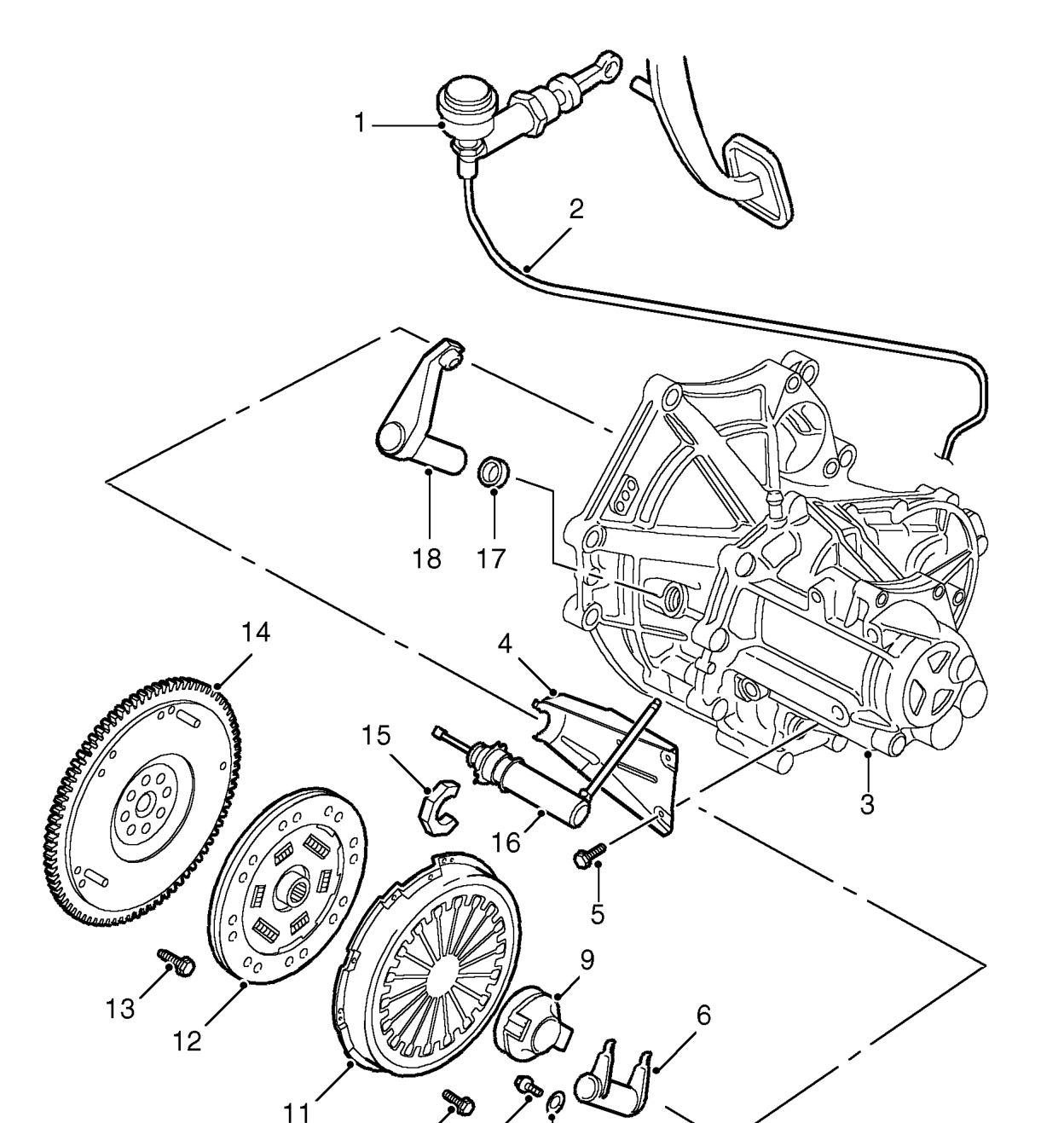

CLUTCH COMPONENTS

Clutch components
  1. Clutch master cylinder
  2. Tube
  3. Gearbox
  4. Bracket
  5. Bolt 3 off
  6. Release fork
  7. Spring washer
  8. Bolt
  9. Release bearing
  10. Bolt 6 off
  11. Clutch pressure plate
  12. Clutch drive plate
  13. Bolt 6 off
  14. Flywheel
  15. Clip
  16. Clutch slave cylinder
  17. Release shaft oil seal
  18. Release lever
