Land Rover Freelander Workshop Manual (1998-2000)14 · Clutch
14 · Transmission

Clutch (Pressure plate): Description and operation

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Description and operation › Pressure plate
ClutchPressure plate

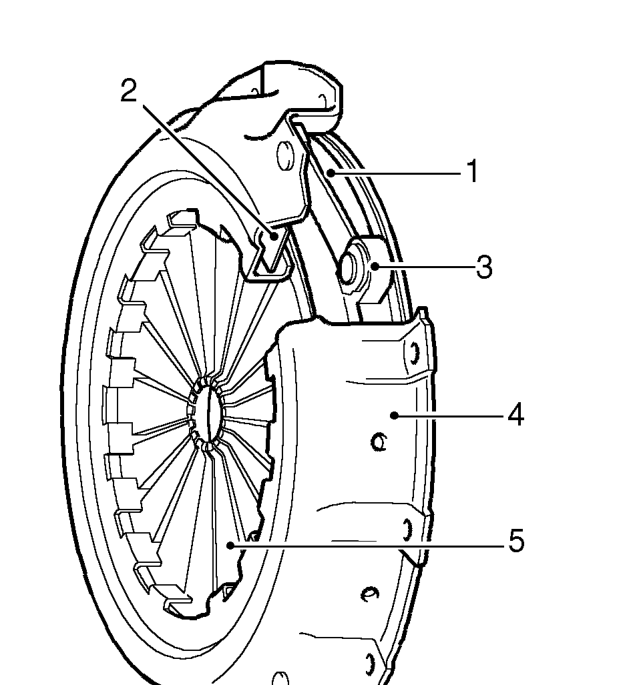

Pressure plate

Pressure plate

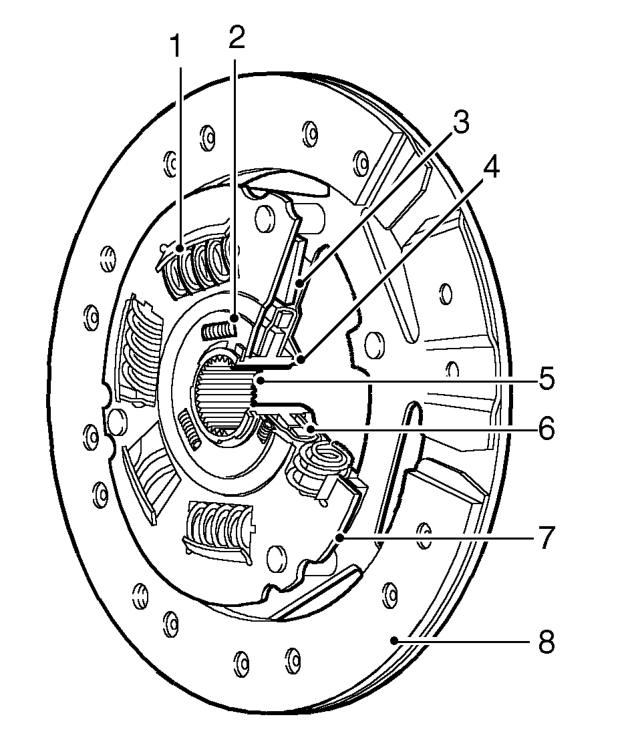

Drive plate

Drive plate
  1. Leaf springs
  2. Fulcrum rings
  3. Pressure plate
  4. Cover
  5. Diaphragm
  6. Damper springs
  7. Pre damper springs
  8. Inner plate
  9. Friction damper
  10. Splined hub
  11. Central plate
  12. Outer plates
  13. Friction material
