DRIVE BELT - ALTERNATOR - K SERIES - WITH AIR CONDITIONING

Service repair no - 86.10.05/20

Check

  1. Disconnect battery earth lead.
  2. Remove underbelly panel. See BODY, Exterior fittings.
  3. Check condition of drive belt, renew a drive belt that shows signs of wear or splitting.

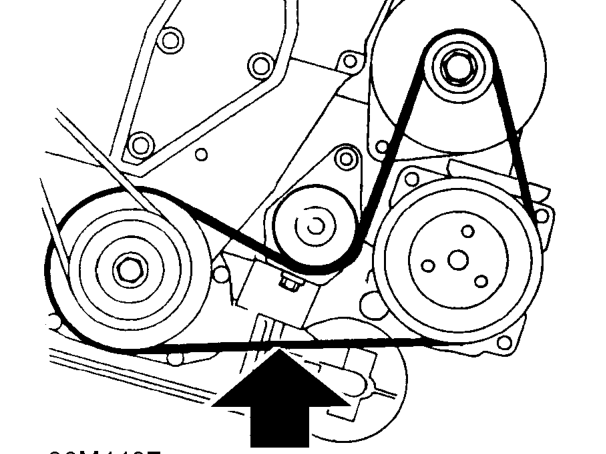

Drive belt - alternator - k series - with air conditioning – Check condition of drive belt, renew a drive belt that shows signs of wear or splitting.
  1. Apply a force of 10 kg to the drive belt at position X and measure the deflection between the crankshaft pulley and air conditioning compressor pulley. Deflection must be 9 - 10 mm.

Adjust

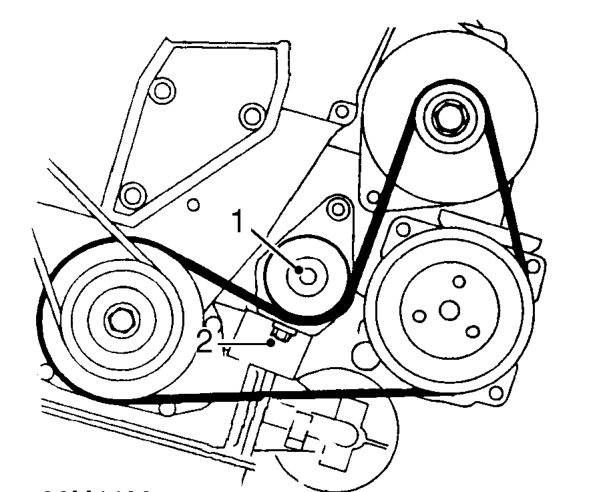

Drive belt - alternator - k series - with air conditioning – Apply a force of 10 kg to the drive belt at position X and measure the deflection between
  1. Loosen tensioner pulley retaining nut.
  2. Increase drive belt tension by turning the tensioner adjusting bolt clockwise.
  3. Tighten tensioner pulley retaining nut to 25 Nm.
  4. Recheck drive belt tension.
  5. Fit underbelly panel. See BODY, Exterior fittings.
  6. Connect battery earth lead.
