HEADLAMPS ADJUSTMENT

Service repair no - 86.40.17

Inspect

  1. Align suitable beam setting equipment to headlamp.
  2. Switch on headlamps. Headlamp setting 1.2% below horizontal and parallel.

Adjust

  1. Adjust headlamp using a 6 mm Allen key.

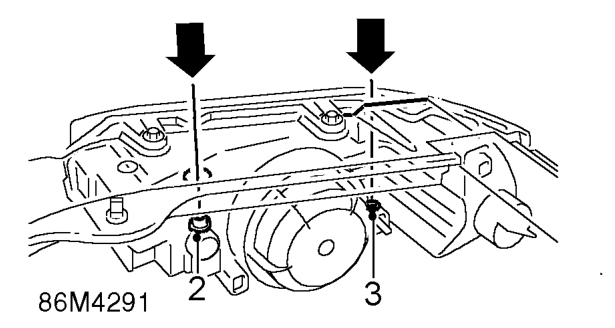

Headlamps adjustment – Adjust headlamp using a 6 mm Allen key.
  1. Turn Allen screw for vertical alignment.
  2. Turn Allen screw for horizontal alignment.
  3. Align beam setting equipment to 2nd headlamp.
  4. Adjust 2nd headlamp as detailed in steps 1 to 3 above.
  5. Switch off headlamps.
  6. Remove beam setting equipment.
