ALTERNATOR - ’L’ SERIES

Service repair no - 86.10.02

Remove

  1. Disconnect battery earth lead.
  2. Remove auxiliary drive belt. See this section.
Alternator - ’l’ series – Remove auxiliary drive belt. See this section.

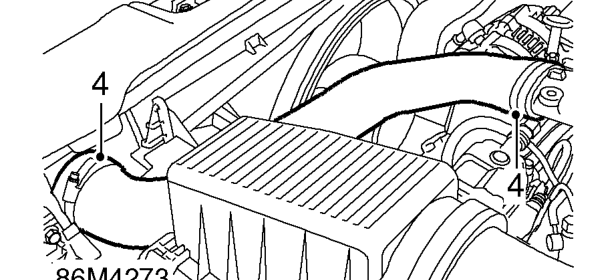

  1. Release 2 clips securing intercooler top hose, and remove hose.
Alternator - ’l’ series – Release 2 clips securing intercooler top hose, and remove hose.

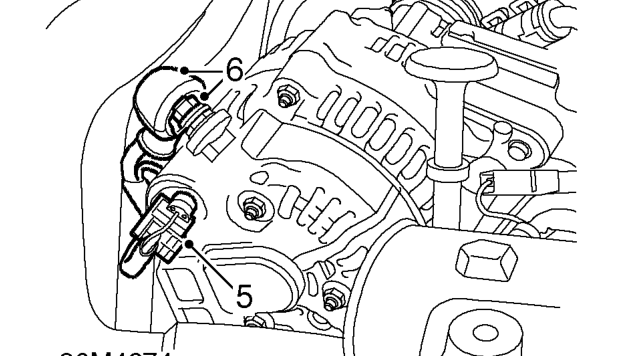

  1. Disconnect multiplug from alternator.
  2. Release cover, remove nut and disconnect battery cable from alternator.
Alternator - ’l’ series – Release cover, remove nut and disconnect battery cable from alternator.

Models with Air Conditioning fitted:

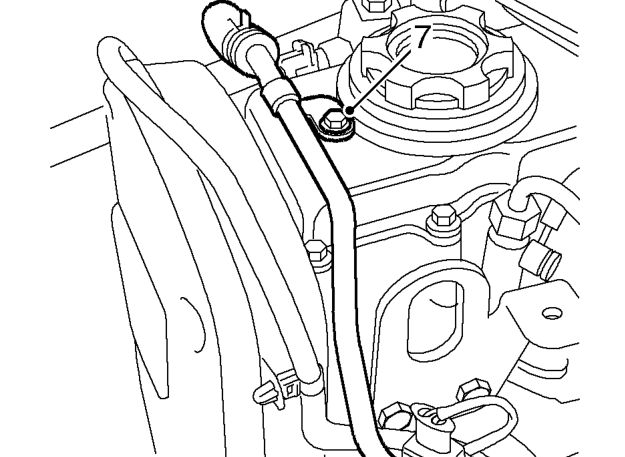

  1. Remove bolt securing brake servo vacuum pipe to camshaft cover.
Models with air conditioning fitted: – Remove bolt securing brake servo vacuum pipe to camshaft cover.

All Models:

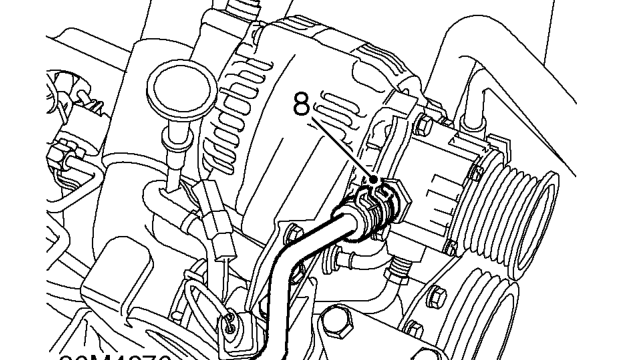

  1. Release clip and disconnect vacuum hose from vacuum pump.
  2. Position drain tin to collect oil spillage.
