HARNESS - ENGINE - ’K’ SERIES

Service repair no - 86.70.17

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Remove battery carrier. See this section.
  3. Remove underbelly panel. See BODY, Exterior fittings.
Harness - engine - ’k’ series – Remove underbelly panel. See BODY, Exterior fittings.
  1. Disconnect multiplug from ECM.

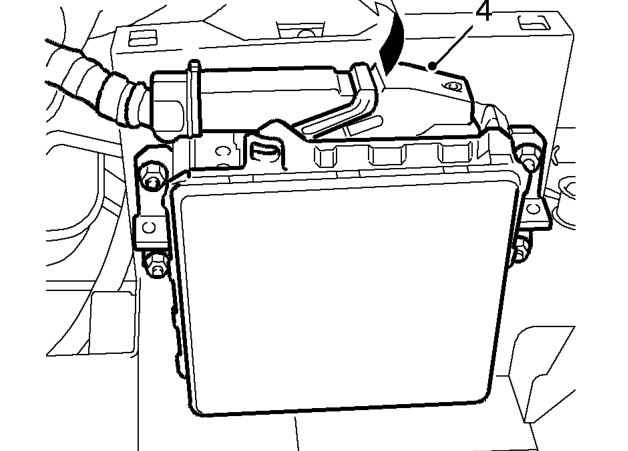

Harness - engine - ’k’ series – Disconnect multiplug from ECM.

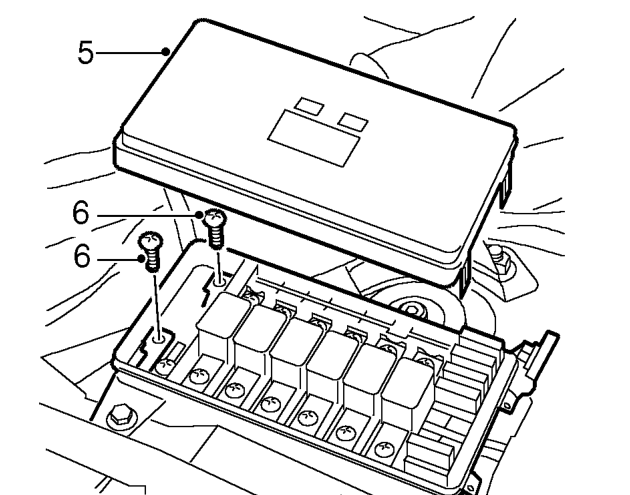

  1. Remove engine fuse box cover.
  2. Remove 2 screws and release harness leads from fuse box.

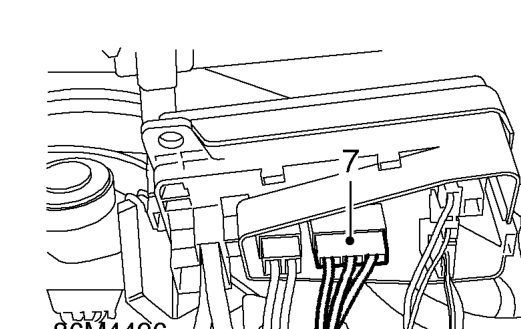

Harness - engine - ’k’ series – Remove 2 screws and release harness leads from fuse box.
  1. Disconnect harness multiplug from fuse box.

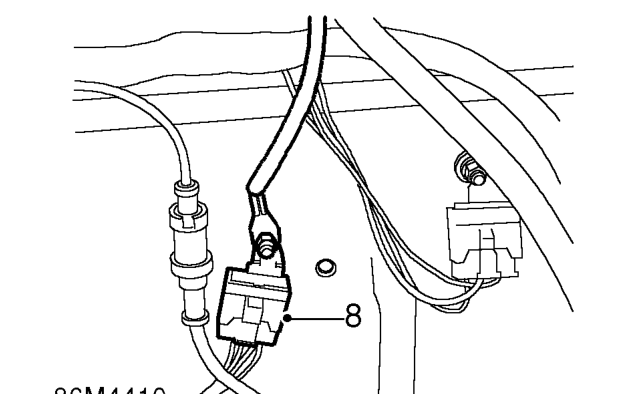

Harness - engine - ’k’ series – Disconnect harness multiplug from fuse box.
  1. Disconnect earth lead multiplug.

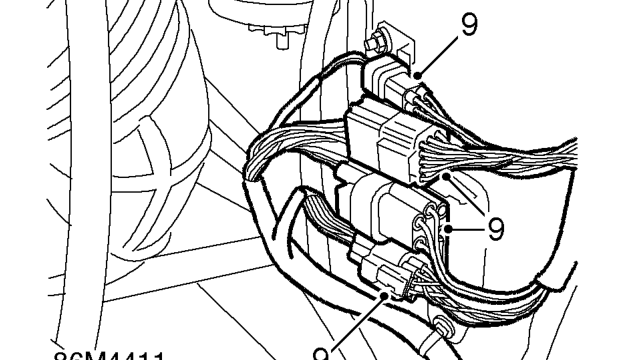

Harness - engine - ’k’ series – Disconnect earth lead multiplug.
  1. Disconnect 3 engine harness multiplugs from main harness.
