Workshop Manuals Factory service & repair Land Rover
Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Speaker - rear - 3 door

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Speaker - rear - 3 door
ElectricalSpeaker - rear - 3 door

SPEAKER - REAR - 3 DOOR

Service repair no - 86.50.12

Remove

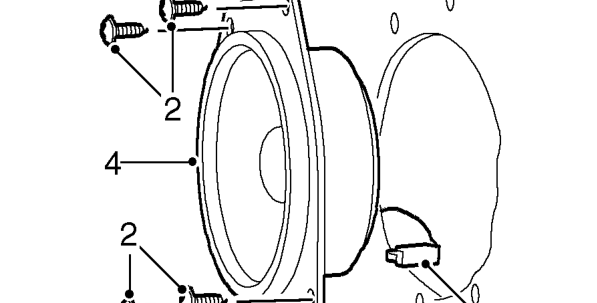

  1. Remove body side rear trim casing. See BODY, Interior trim components.
Speaker - rear - 3 door – Remove body side rear trim casing. See BODY, Interior trim components.
  1. Remove 4 screws securing speaker to door.
  2. Disconnect multiplug from speaker.
  3. Remove speaker from door.

Refit

  1. Position speaker to door, and connect multiplug.
  2. Fit and tighten securing screws.
  3. Fit trim casing. See BODY, Interior trim components.

SPEAKER - REAR - 5 DOOR

Service repair no - 86.50.12

Remove

  1. Remove rear door trim casing. See BODY, Doors.
Speaker - rear - 5 door – Remove rear door trim casing. See BODY, Doors.
  1. Remove 4 screws securing speaker to door.
  2. Disconnect multiplug from speaker.
  3. Remove speaker from door.

Refit

  1. Position speaker to door, and connect multiplug.
  2. Fit and tighten securing screws.
  3. Fit trim casing. See BODY, Doors.
