STOP LAMP - CENTRE - HIGH MOUNTED

Service repair no - 86.41.32

Remove

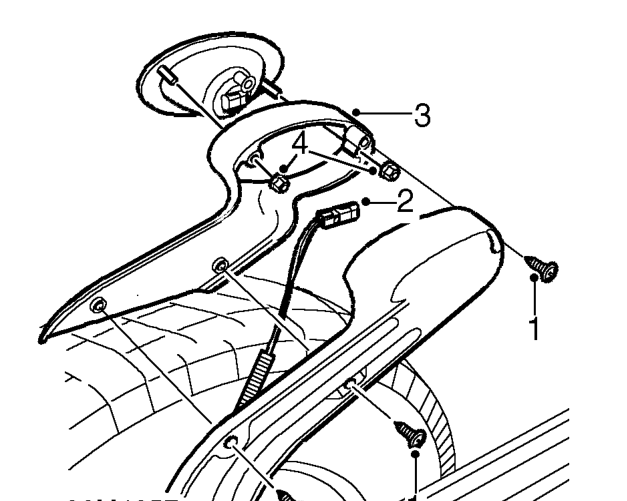

Stop lamp - centre - high mounted – Service repair no - 86.41.32
  1. Remove 3 screws securing high mounted stop lamp bracket to spare wheel carrier.
  2. Release lamp bracket and disconnect multiplug.
  3. Remove lamp and bracket.
  4. Remove 2 nuts and remove lamp from bracket.

Refit

  1. Position lamp to bracket and tighten nuts.
  2. Position lamp bracket and connect multiplug to lamp.
  3. Position lamp bracket to spare wheel carrier and tighten screws.

LAMP - GLOVE BOX COMPARTMENT

Service repair no - 86.45.08

Remove

  1. Open glove box lid.

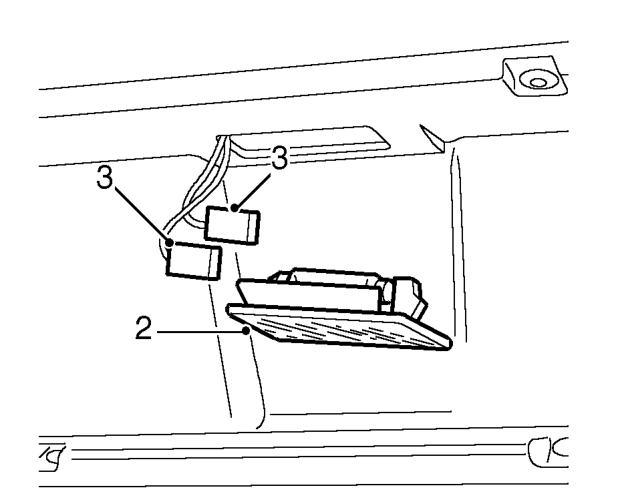

Lamp - glove box compartment – Open glove box lid.
  1. Release lamp from glove box.
  2. Disconnect Lucars and remove lamp.

Refit

  1. Position lamp and connect Lucars.
  2. Secure lamp and close glove box lid.
