Switch - headlamp levelling

Make

Land Rover

Model

Freelander Workshop Manual

Year

1998–2000

Section

Repairs › Switch - headlamp levelling

ElectricalSwitch - headlamp levelling

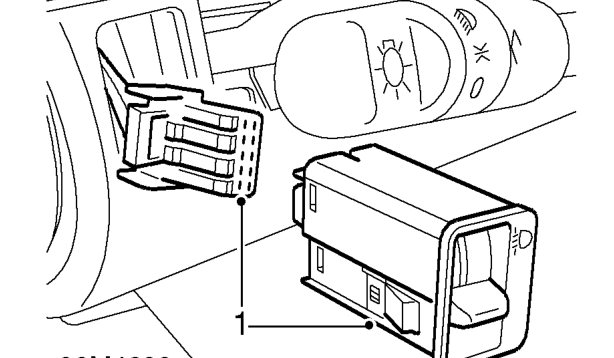

SWITCH - HEADLAMP LEVELLING

Service repair no - 86.65.16

Remove

1. Release headlamp levelling switch from fascia and disconnect multiplug.

Refit

1. Position switch, connect multiplug and secure switch to fascia.

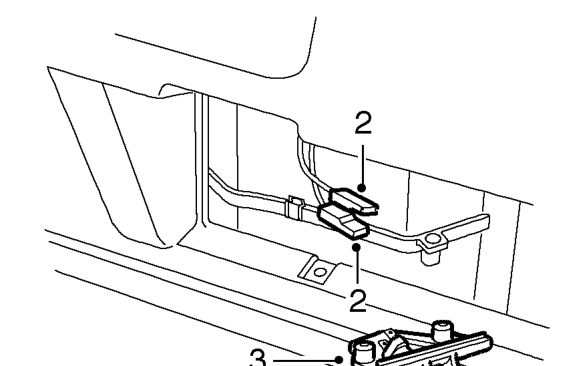

SWITCH - GLOVE BOX LAMP

Service repair no - 86.65.24

Remove

1. Remove glove box. See BODY, Interior trim components.

2. Disconnect 2 Lucars from glove box lamp switch.
3. Remove switch from glove box latch.

Refit

1. Fit switch and connect Lucars.
2. Fit glove box. See BODY, Interior trim components.

28 Electrical
