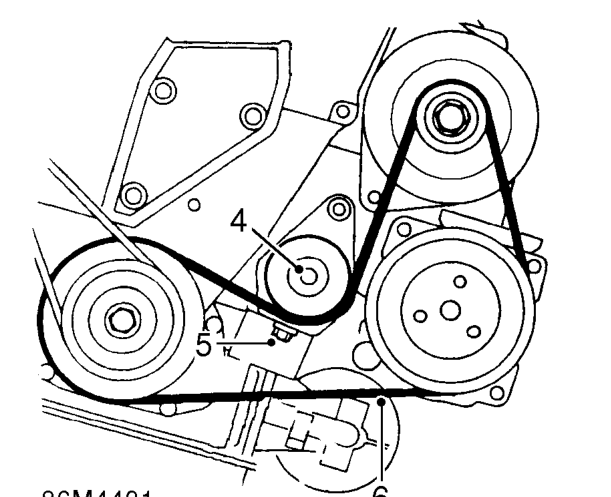

Drive belt - alternator - ’k’ series with air conditioning

DRIVE BELT - ALTERNATOR - ’K’ SERIES WITH AIR CONDITIONING

Service repair no - 86.10.03/20

Remove

1. Disconnect battery earth lead.
2. Remove underbelly panel. See BODY, Exterior fittings.
3. Remove PAS drive belt. See STEERING, Repairs.

4. Loosen tensioner pulley retaining nut.
5. Loosen drive belt tension by turning tensioner adjusting bolt anti-clockwise.
6. Remove drive belt from remaining pulleys and remove from vehicle.

Refit

1. Clean drive belt pulley grooves and ensure grooves are not damaged.
2. Fit drive belt around pulleys, ensure belt is correctly aligned in pulley grooves.
3. Tension auxiliary drive belt. See Adjustments.
4. Fit PAS drive belt. See STEERING, Repairs.
5. Fit underbelly panel. See BODY, Exterior fittings.
6. Connect battery earth lead.

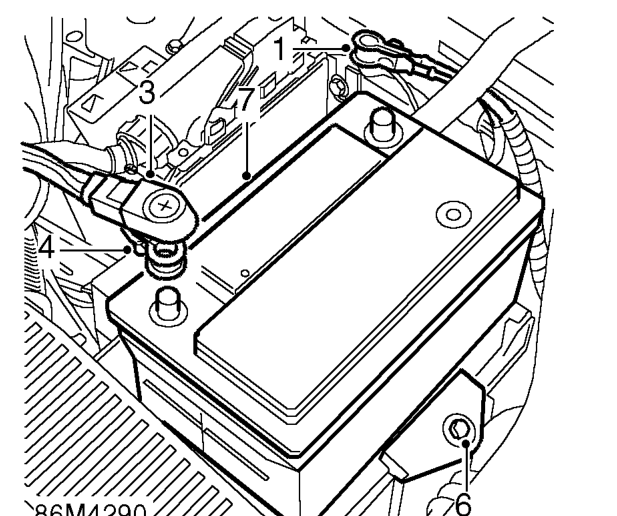

BATTERY

Service repair no - 86.15.01

Remove

1. Loosen connector nut on negative lead.
2. Remove negative lead from battery terminal.
3. Release cover from positive terminal.
4. Loosen connector nut on positive lead.
5. Remove positive lead from battery terminal.
6. Remove bolt securing battery clamp and collect clamp.
7. Remove battery from vehicle.

Refit

1. Fit battery to vehicle.
2. Fit battery clamp and tighten bolt.
3. Fit positive lead to positive terminal and tighten connector nut.
4. Fit cover to positive terminal.
5. Fit negative lead to negative terminal, and tighten connector nut.
