AERIAL - 3 DOOR

Service repair no - 86.50.18

Remove

  1. Remove headlining. See BODY, Interior trim components.
Aerial - 3 door – Remove headlining. See BODY, Interior trim components.

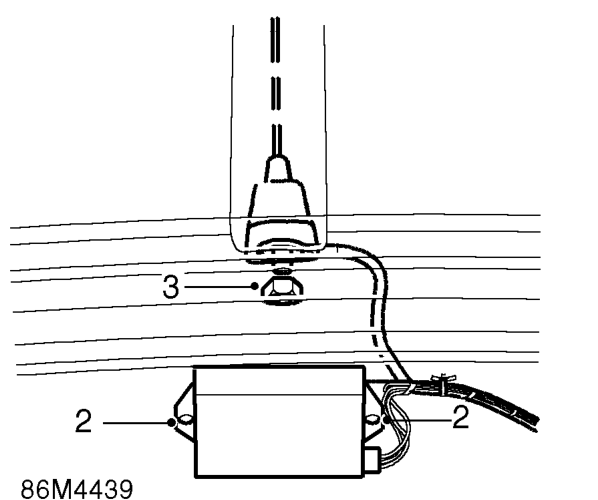

  1. Remove 2 screws and release volumetric sensor mounting bracket.
  2. Remove nut securing coaxial cable to aerial base.
Aerial - 3 door – Remove nut securing coaxial cable to aerial base.

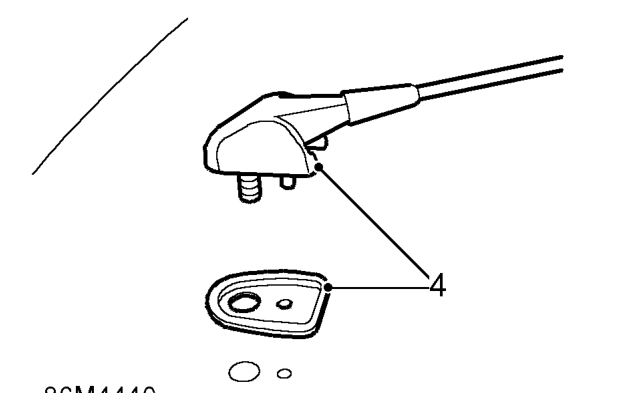

  1. Remove aerial base from roof panel and remove rubber seal.

Refit

  1. Fit rubber seal and position aerial base to roof panel.
  2. Connect coaxial cable and tighten nut.
  3. Position volumetric sensor bracket and tighten screws.
  4. Fit headlining. See BODY, Interior trim components.
