Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Models with ABS:

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Models with ABS:
ElectricalModels with ABS:
Diagram

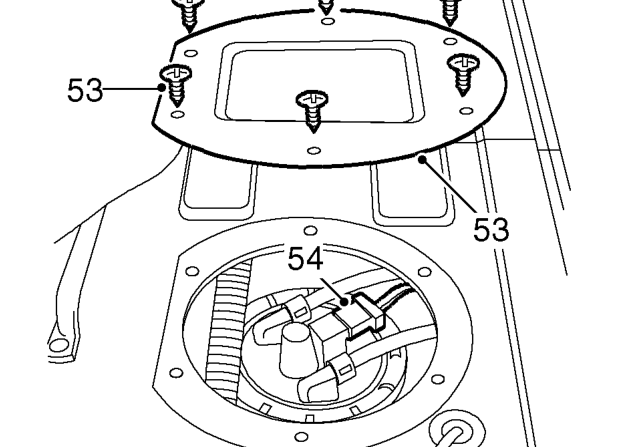

  1. Remove 6 screws from access cover and remove cover.

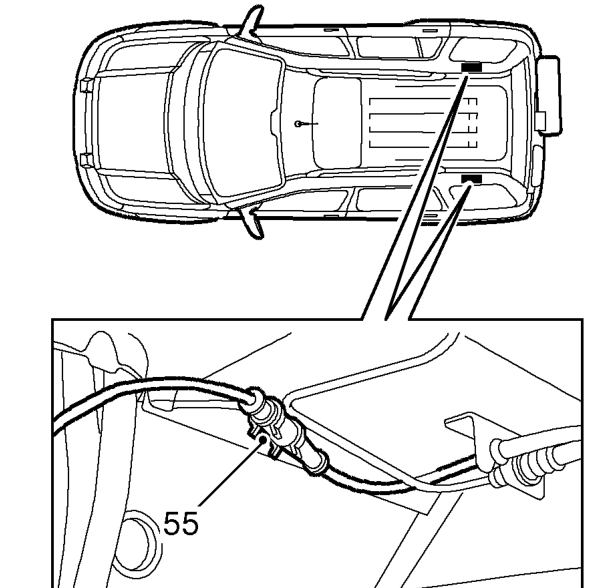

  2. Disconnect multiplug from tank unit.
Disconnect multiplug from tank unit.

Models with ABS:

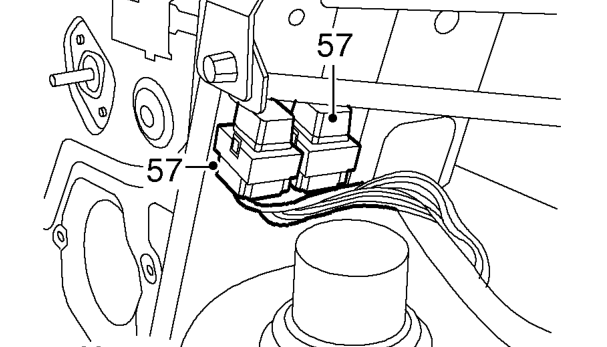

  1. Release both rear ABS speed sensor harnesses and disconnect multiplugs.
  2. Pull harness into vehicle interior.
Models with abs: – Pull harness into vehicle interior.

All models:

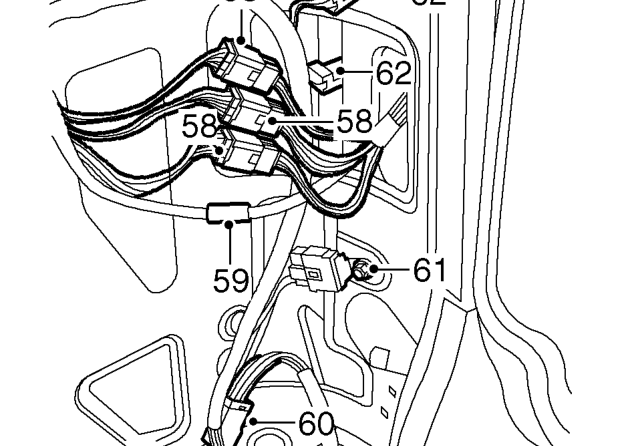

  1. Release and disconnect rear window lift and wash/wipe relays.
All models: – Release and disconnect rear window lift and wash/wipe relays.
  1. Disconnect 3 multiplugs from tail door harness.
  2. Disconnect rear screen washer tube.
  3. Disconnect multiplug from towing electrics.
  4. Remove nut from RH rear earth header and release header.
  5. Disconnect multiplugs from reverse and hazard lamps.
  6. Remove nut from LH rear earth header and release header.
