SENSOR - VOLUMETRIC - ALARM SYSTEM - 3 DOOR

Service repair no - 86.77.29

Remove

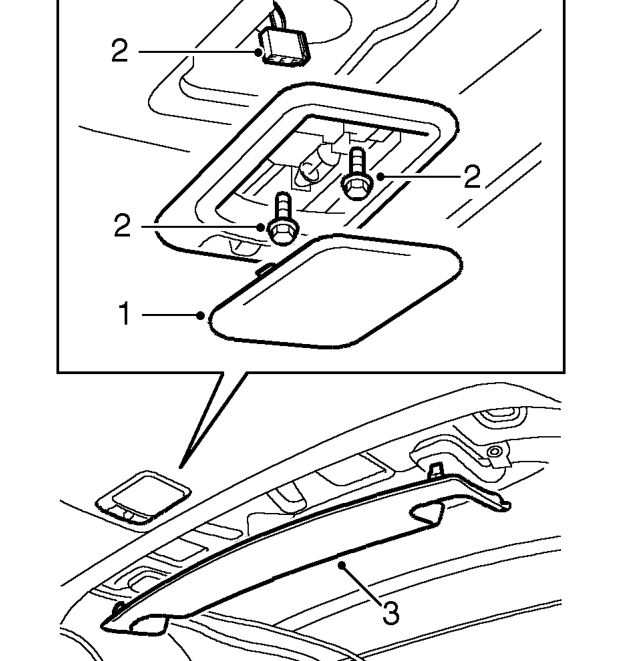

Sensor - volumetric - alarm system - 3 door – Service repair no - 86.77.29
  1. Remove lens from roof lamp.
  2. Remove 2 screws securing roof lamp, disconnect multiplug and remove lamp assembly.
  3. Release headlining rear finisher from roof panel and remove finisher.

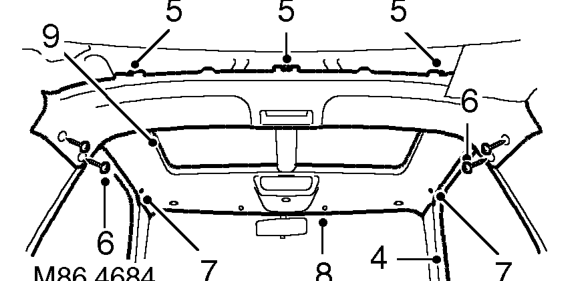

Sensor - volumetric - alarm system - 3 door – Release headlining rear finisher from roof panel and remove finisher.
  1. Release door aperture seals to clear headlining.
  2. Release 3 studs securing rear edge of headlining to roof panel.
  3. Remove 4 screws securing headlining to ’B’

posts.

  1. Release 2 studs at LH and RH side of headlining.
  2. Lower front edge of headlining.
  3. Release sun roof seal.

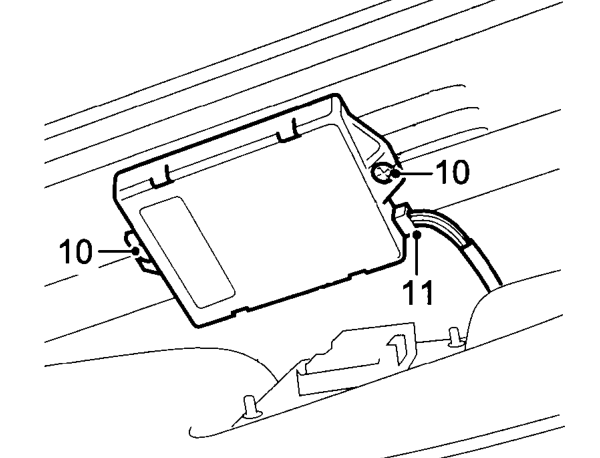

Sensor - volumetric - alarm system - 3 door – Release sun roof seal.
  1. Remove screws from volumetric sensor.
  2. Disconnect multiplug and remove sensor.

Refit

  1. Position sensor and connect multiplug.
  2. Fit and tighten sensor screws.
  3. Fit and tighten screws securing headlining to ’B’ posts.
  4. Secure headlining behind rear vent rubbers.
  5. Fit headlining rear finisher.
  6. Refit door aperture seals.
  7. Position sun roof seal to headlining.
  8. Position roof lamp and connect multiplug.
  9. Tighten roof lamp screws and fit lens.
