Harness - front door

HARNESS - FRONT DOOR

Service repair no - 86.70.65

Remove

1. Disconnect battery earth lead.
2. Remove front door water shedder. See BODY, Doors.

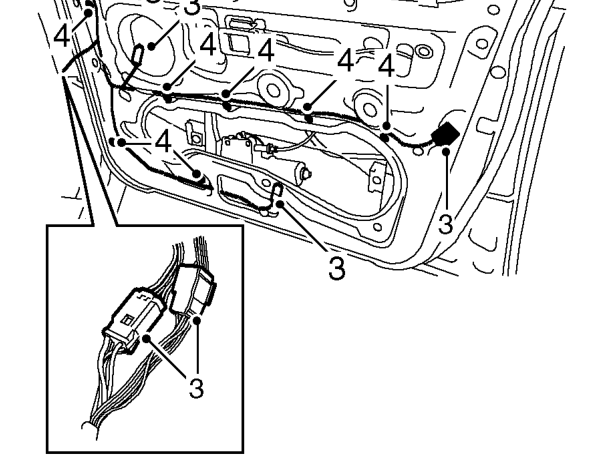

3. Release multiplugs from door speaker, door lock, door mirror and window motor.
4. Release 7 clips securing door harness to door.
5. Release 2 multiplugs from location at base of ’A’ post and disconnect multiplugs.
6. Release sheath from front edge of door, and pull harness from door.
7. Release sheath from ’A’ post, and pull harness from ’A’ post.
8. Remove door harness.

Refit

1. Position harness to ’A’ post and feed harness partly into ’A’ post.
2. Feed sheath onto harness and locate sheath to ’A’ post.
3. Feed harness through front edge of door and secure sheath to door.
4. Connect and secure multiplugs at base of ’A’ post.
5. Position harness in door and secure with clips.
6. Connect multiplugs to door mirror, door speaker, door lock and window motor.
7. Fit water shedder. See BODY, Doors.
8. Connect battery earth lead.
