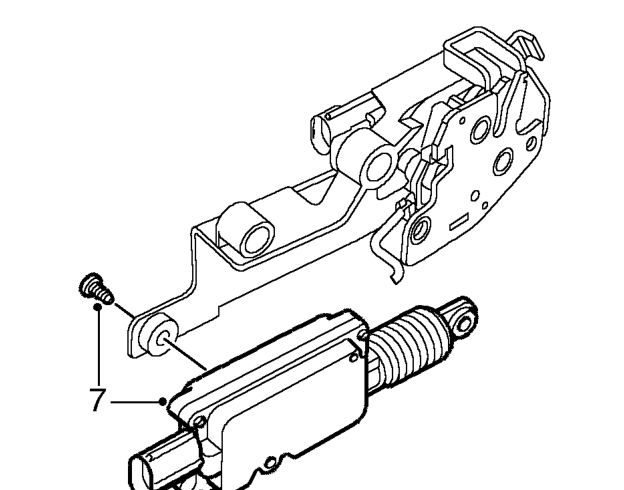

7. Remove screw from motor and remove motor from latch.

Refit

1. Position motor to latch, fit and tighten screw.
2. Position door latch, connect multiplugs and harness clips.
3. Locate in position, fit and tighten screws.
4. Fit water shedder. See BODY, Doors.

SWITCH - HORN PUSH

Service repair no - 86.30.01

Remove

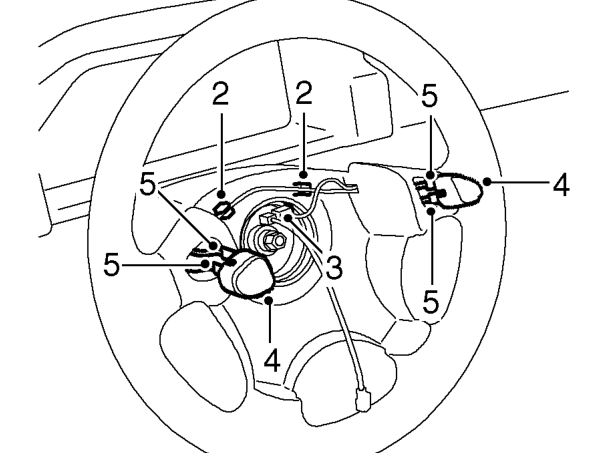

1. Remove air bag from steering wheel. See RESTRAINT SYSTEMS, Repairs.

2. Release horn switch leads from retainers on steering wheel base.
3. Disconnect multiplug from rotary coupler.
4. Using a broad round edged tool, carefully prise horn switch from steering wheel while feeding harness through foam channel.

CAUTION: The tool must be inserted to a depth of 15mm. midway along lower edge of switch.

5. Note fitted position of harness connection and disconnect 2 Lucars from switch.

Refit

1. Position NEW switch and connect Lucars.
2. Carefully fit switch to steering wheel while gently pulling on harness.
3. Connect multiplug to rotary coupler and secure leads to base of steering wheel.
4. Fit air bag to steering wheel. See RESTRAINT SYSTEMS, Repairs.
