Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Lamp - number plate

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Lamp - number plate
ElectricalLamp - number plate

LAMP - NUMBER PLATE

Service repair no - 86.40.86

Remove

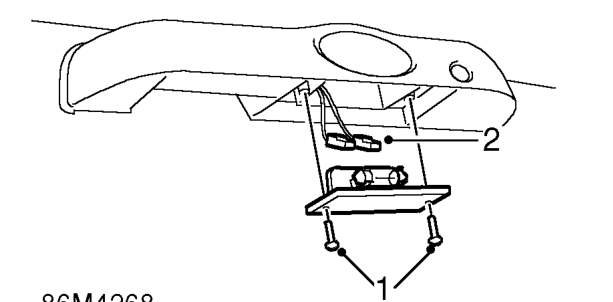

Lamp - number plate – Service repair no - 86.40.86
  1. Remove 2 screws securing lamp to tail door handle.
  2. Disconnect Lucars and remove lamp.

Refit

  1. Position lamp and connect Lucars. Fit and tighten screws.

LAMP - REAR FOG GUARD

Service repair no - 86.41.15

Remove

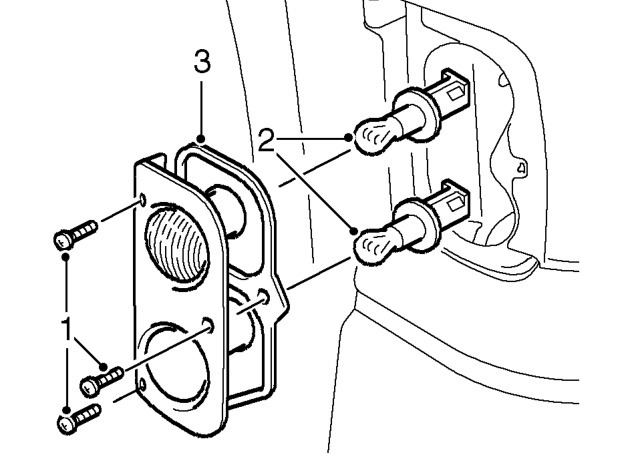

Lamp - rear fog guard – Service repair no - 86.41.15
  1. Remove 3 screws securing lamp to body.
  2. Release lamp, disconnect 2 bulb holders and remove lamp.
  3. Remove lamp sealing rubber.

Refit

  1. Fit sealing rubber and bulb holders to lamp.
  2. Position lamp, fit and tighten screws.
