ElectricalRelay - control - tail door glass

RELAY - CONTROL - TAIL DOOR GLASS

Service repair no - 86.25.45

Remove

1. Remove RH rear quarter lower casing. See BODY, Interior trim components.

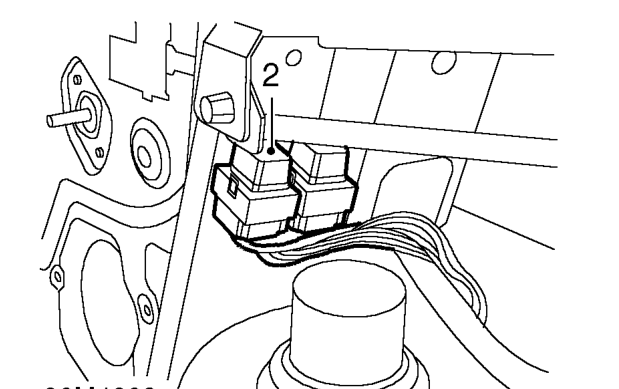

2. Remove tail door glass control relay.

Refit

1. Fit relay.
2. Fit RH rear quarter lower casing. See BODY, Interior trim components.

MICRO-SWITCH - HARD-BACK

Service repair no - 86.25.46

Remove

1. Remove hard-back or soft-back. See Owner’s Handbook.
2. Remove RH upper trim casing. See BODY, Interior trim components.

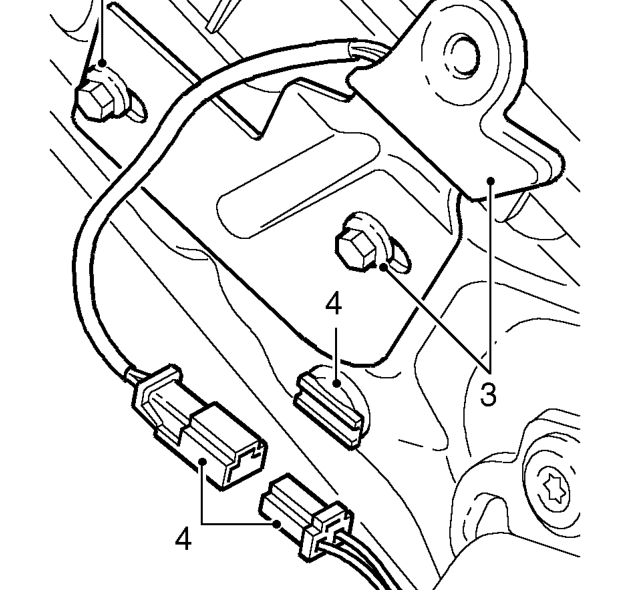

3. Remove 2 bolts securing soft-back support bracket and remove bracket.
4. Disconnect micro-switch multiplug and release from retainer.
