Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Models with ABS:

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Models with ABS:
ElectricalModels with ABS:
Diagram
  1. Release and disconnect multiplug from airbag ECU.
  2. Remove airbag ECU securing bolt and release earth lead.
  3. Remove nut from earth header and release header from floor tunnel.

Models with ABS:

  1. Disconnect multiplug from gear lever hill descent switch.

All models:

  1. Disconnect Lucar from handbrake switch.
  2. Release 6 clips from SRS harness.
  3. Remove nut from rear heater ducting and remove ducting.

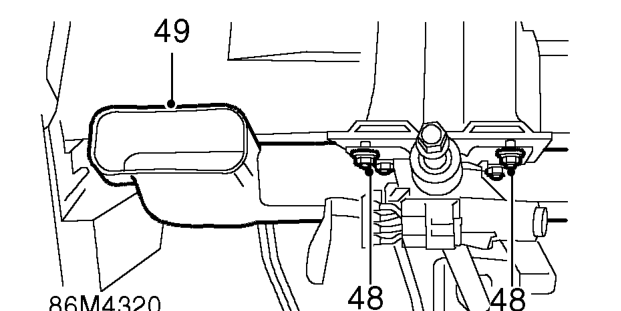

All models: – Remove nut from rear heater ducting and remove ducting.
  1. Remove 4 nuts from steering column and lower column.
  2. Remove face level vent ducting to access main harness clips.
  3. Release all harness clips from fascia and sills.

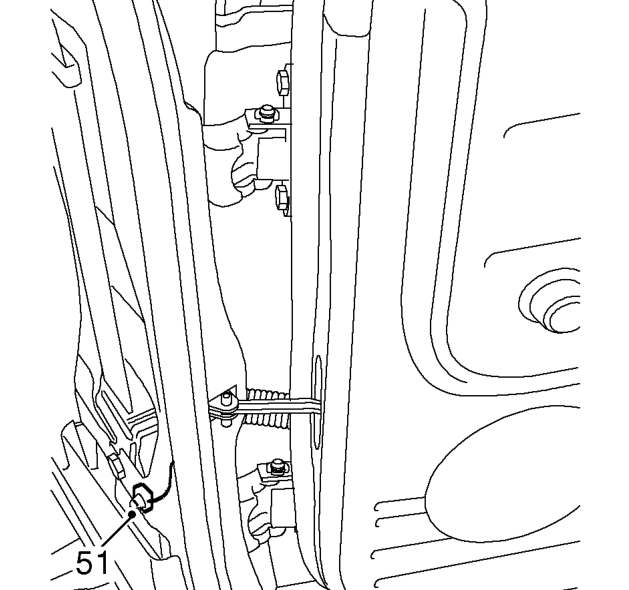

All models: – Release all harness clips from fascia and sills.
  1. Release and disconnect multiplugs from base of ’B/C’ posts.
  2. Remove luggage compartment carpet. See BODY, Interior trim components.
