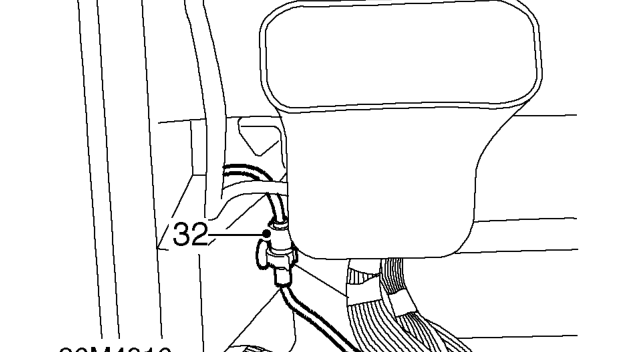

32. Release and disconnect multiplugs from ’A’ post.

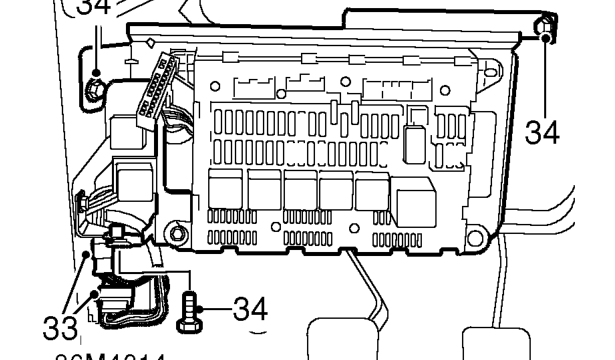

33. Release and disconnect multiplugs from brake light and ABS modulator relays.
34. Remove 3 bolts from passenger compartment fuse box.

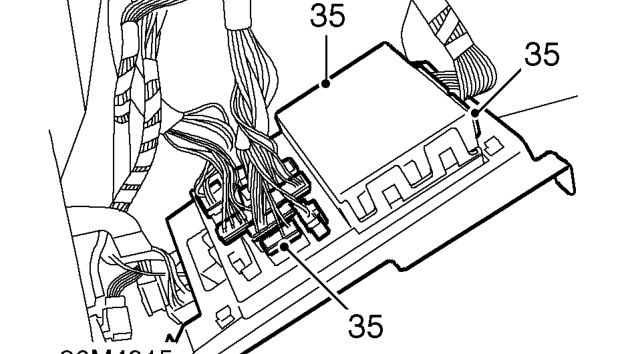

35. Release fuse box and disconnect 11 multiplugs, remove fuse box.

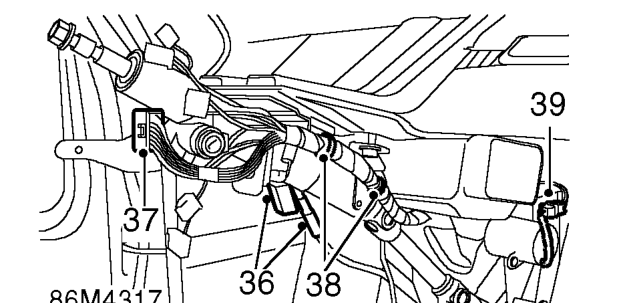

36. Release and disconnect roof harness multiplug and aerial socket.
37. Disconnect multiplug from steering column switch.
38. Release 2 harness clips from steering column.
39. Disconnect multiplug from throttle position sensor.

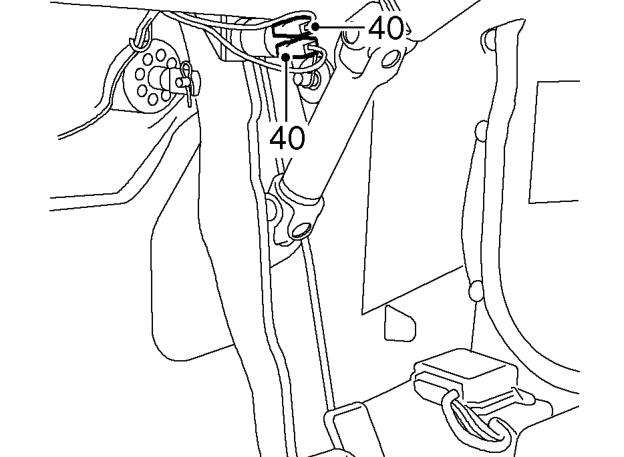

40. Disconnect 2 Lucars from brake light switch.
