Land Rover Freelander Workshop Manual (1998-2000)28 · Electrical
28 · Electrical

Cigar lighter - front

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Cigar lighter - front
ElectricalCigar lighter - front

CIGAR LIGHTER - FRONT

Service repair no - 86.65.60

Remove

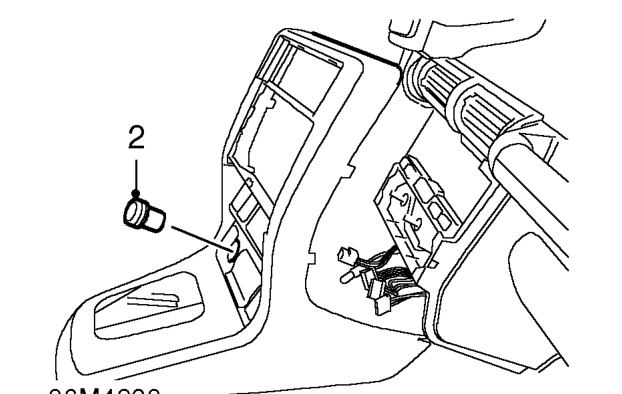

  1. Remove front console. See BODY, Interior trim components.
Cigar lighter - front – Remove front console. See BODY, Interior trim components.

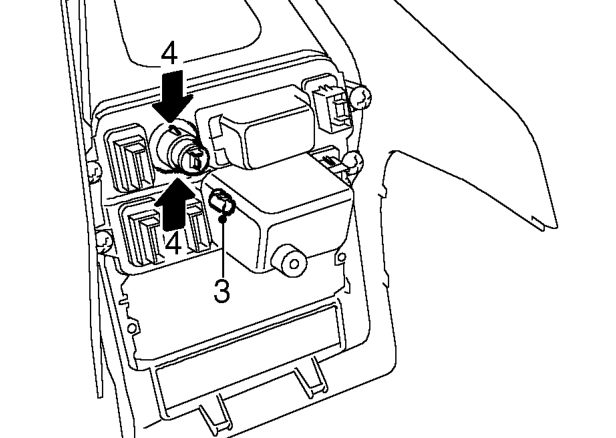

  1. Remove cigar lighter element.
Cigar lighter - front – Remove cigar lighter element.
  1. Remove bulb holder from lighter.
  2. Release clips and remove lighter from console.

Refit

  1. Fit lighter to console.
  2. Fit bulb holder to lighter.
  3. Fit lighter element.
  4. Fit front console. See BODY, Interior trim components.

SWITCH - REAR FOG LAMP

Service repair no - 86.65.65

Remove

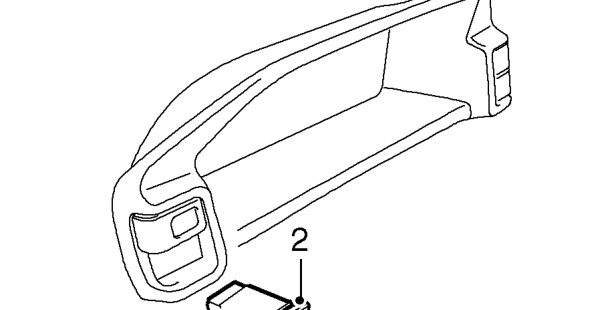

  1. Remove instrument panel cowl. See INSTRUMENTS, Repairs.
Switch - rear fog lamp – Remove instrument panel cowl. See INSTRUMENTS, Repairs.
  1. Remove rear fog lamp switch from instrument panel cowl.

Refit

  1. Fit switch to instrument panel cowl.
  2. Fit instrument panel cowl. See INSTRUMENTS, Repairs.
