Drive belt - auxiliary - ’l’ series

DRIVE BELT - AUXILIARY - ’L’ SERIES

Service repair no - 86.10.03

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
3. Remove underbelly panel. See BODY, Exterior fittings.

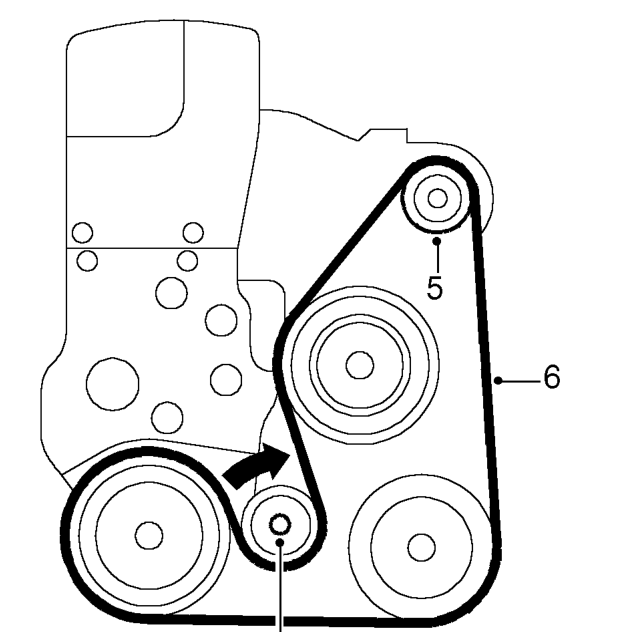

4. Using a 15 mm ring spanner on pulley bolt of drive belt tensioner, rotate pulley clockwise and hold.
5. With assistance, release drive belt from alternator pulley.
6. Remove drive belt from remaining pulleys and remove from vehicle.

Refit

1. Clean drive belt pulley grooves and ensure grooves are not damaged.
2. Fit drive belt around pulleys, except alternator pulley, ensure belt is correctly aligned in pulley grooves.
3. Hold tensioner pulley fully clockwise, with assistance fit drive belt around alternator pulley.
4. Fit underbelly panel. See BODY, Exterior fittings.
5. Fit engine acoustic cover. See ENGINE - ’L’ SERIES, Repairs.
6. Connect battery earth lead.
