LAMP - SIDE REPEATER

Service repair no - 86.40.53

Remove

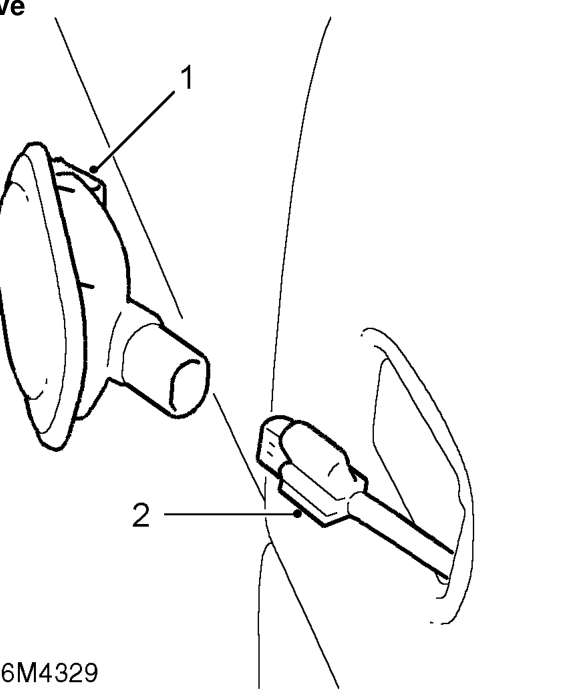

Lamp - side repeater – Service repair no - 86.40.53
  1. Push lamp towards rear of vehicle to release spring clip, and release lamp from wing.
  2. Disconnect multiplug.

Refit

  1. Connect multiplug to lamp and secure lamp to wing.

LAMP - TAIL

Service repair no - 86.40.70

Remove

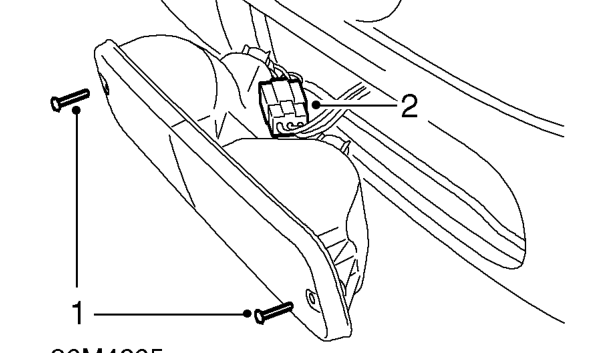

Lamp - tail – Service repair no - 86.40.70
  1. Remove 2 screws securing tail lamp to rear bumper.
  2. Release lamp, disconnect multiplug and remove lamp.

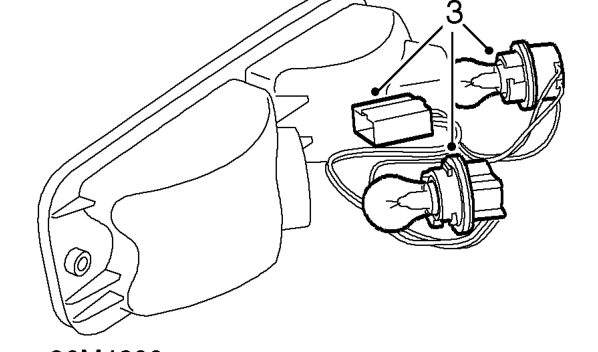

Lamp - tail – Release lamp, disconnect multiplug and remove lamp.

Do not carry out further dismantling if component is removed for access only.

  1. Remove multiplug and bulb holders from tail lamp.
  2. Fit multiplug and bulb holders to replacement tail lamp.

Refit

  1. Position tail lamp and connect multiplug. Fit and tighten screws.
