ElectricalMotor - tail door

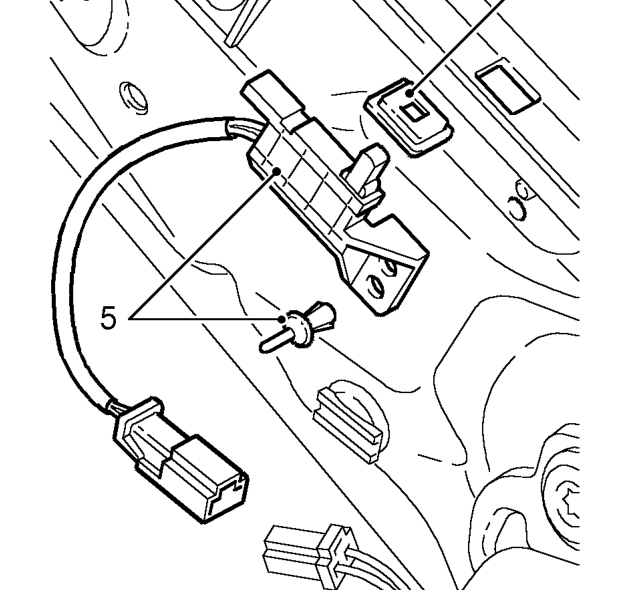

Diagram
  1. Remove peg securing-micro switch, and remove micro-switch.
  2. Collect micro-switch seal.

Refit

  1. Locate micro-switch seal, position micro-switch and secure with peg.
  2. Connect multiplug and secure to retainer
  3. Position soft-back support bracket, fit bolts and tighten to 25 Nm.
  4. Fit upper trim casing. See BODY, Interior trim components.
  5. Fit hard-back. See Owner’s Handbook.

MOTOR - TAIL DOOR

Service repair no - 86.26.02

Remove

  1. Remove tail door water shedder. See BODY, Doors.

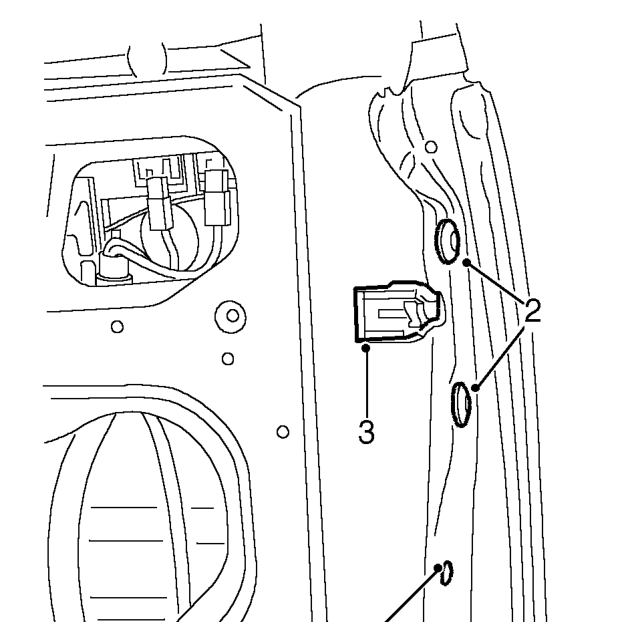

Motor - tail door – Remove tail door water shedder. See BODY, Doors.
  1. Remove 4 screws securing door latch.
  2. Release door latch to access harness clips and multiplugs.

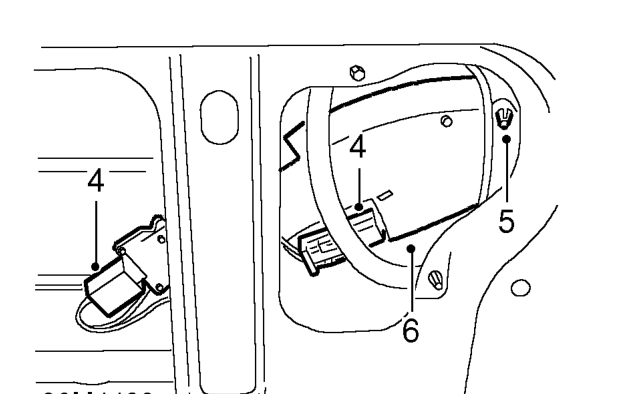

Motor - tail door – Release door latch to access harness clips and multiplugs.
  1. Disconnect 2 multiplugs from door latch.
  2. Release door harness clip from latch.
  3. Remove door latch.
