Door assembly - front

DOOR ASSEMBLY - FRONT

Service repair no - 76.28.01/99

Remove

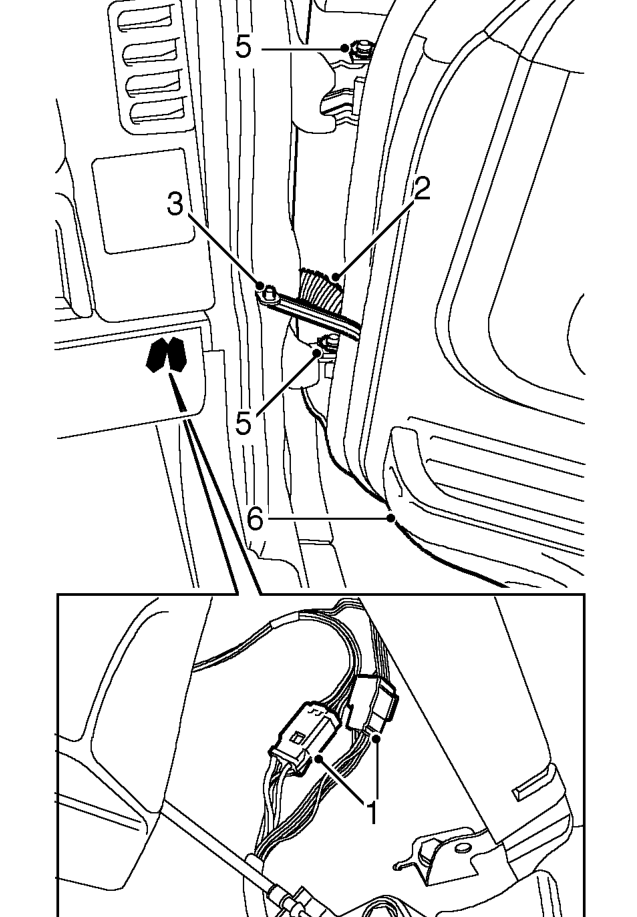

1. Release and disconnect 2 multiplugs from lower ’A’ post.
2. Release harness sheath from ’A’ post and pull door harness through ’A’ post.
3. Remove roll pin from door check strap, and release check strap from ’A’ post.
4. Discard roll pin.
5. Remove 2 ’C’ clips from door hinges.
6. With assistance raise and remove door.

Refit

1. With assistance position door to hinges.
2. Fit ’C’ clips to hinge pins.
3. Position check strap to ’A’ post and secure with NEW roll pin.
4. Feed door harness through ’A’ post and secure harness sheath.
5. Connect and secure multiplugs at base of ’A’ post.
6. Check door alignment. See Adjustments.
