LATCH - REAR DOOR

Service repair no - 76.37.13

Remove

  1. Remove rear door water shedder See this section.

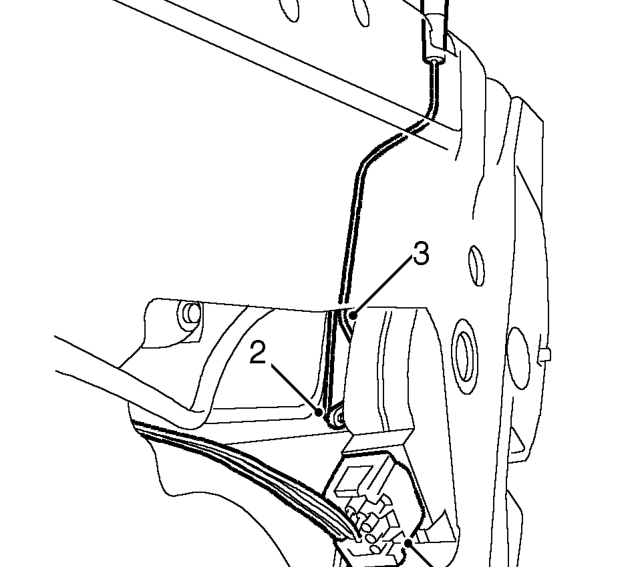

Latch - rear door – Remove rear door water shedder See this section.
  1. Release exterior handle control rod from latch.
  2. Release sill button lock rod and remove lock rod.
  3. Disconnect multiplug from latch.

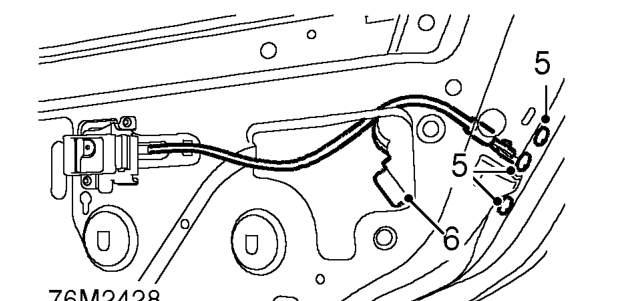

Latch - rear door – Disconnect multiplug from latch.
  1. Remove 3 Torx screws securing latch.
  2. Remove latch through aperture.

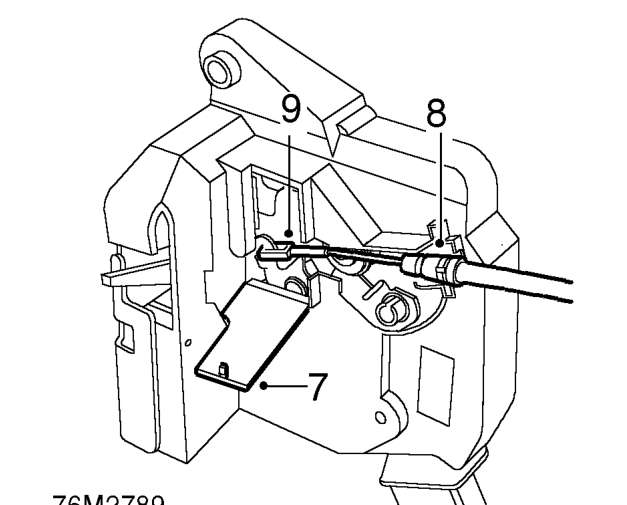

Latch - rear door – Remove latch through aperture.
  1. Open latch security flap.
  2. Release interior release cable clamp from latch.
  3. Disengage interior release cable from latch.

Refit

  1. Secure interior release cable to latch and close latch security flap.
  2. Position latch to door, fit and tighten torx screws.
  3. Connect multiplug to latch.
  4. Connect exterior handle control rod to latch.
  5. Fit and secure sill button lock rod.
  6. Check operation of latch.
  7. Fit water shedder. See this section.
