GLASS - FRONT DOOR

Service repair no - 76.31.01

Remove

  1. Remove front door water shedder. See this section.
Glass - front door – Remove front door water shedder. See this section.

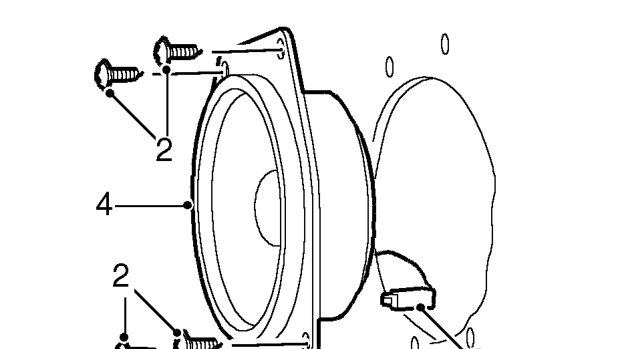

  1. Remove 4 screws securing door speaker.
  2. Disconnect multiplug from door speaker.
  3. Remove door speaker.
Glass - front door – Remove door speaker.

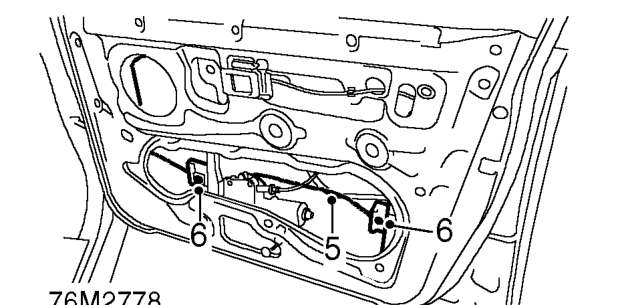

  1. Lower glass to access clamp bolts.
  2. Loosen 2 bolts securing glass to clamps.
Glass - front door – Loosen 2 bolts securing glass to clamps.

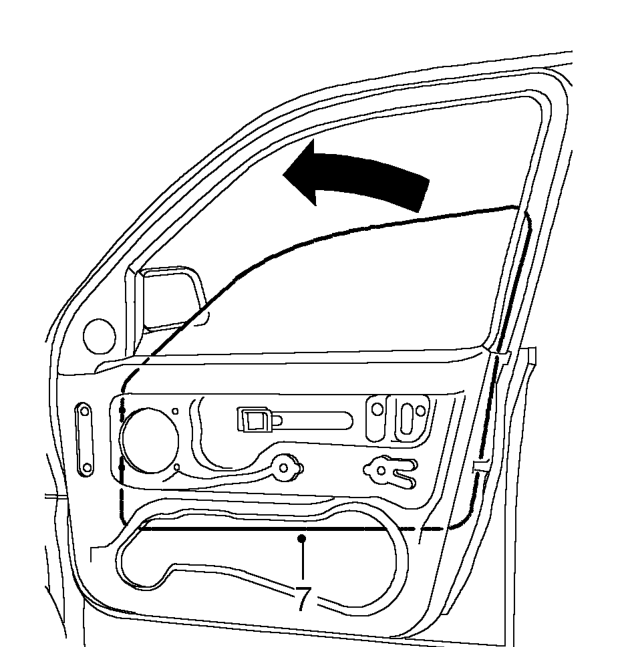

  1. Release glass from clamps, raise and rotate glass to remove from door frame.

Refit

  1. Locate glass in door frame and rotate into position to engage seal and clamps.
  2. Tighten bolts securing glass to 8 Nm.
  3. Raise/lower glass to check operation.
  4. Position door speaker, connect multiplug, fit and tighten screws.
  5. Fit water shedder. See this section.
