Quarter light - rear door

QUARTER LIGHT - REAR DOOR

Service repair no - 76.31.31

The procedure for renewing the quarter light is identical to renewing the rear door glass channel seal. See this section.

REGULATOR - REAR DOOR GLASS

Service repair no - 76.31.46

Remove

1. Remove water shedder from rear door. See this section.

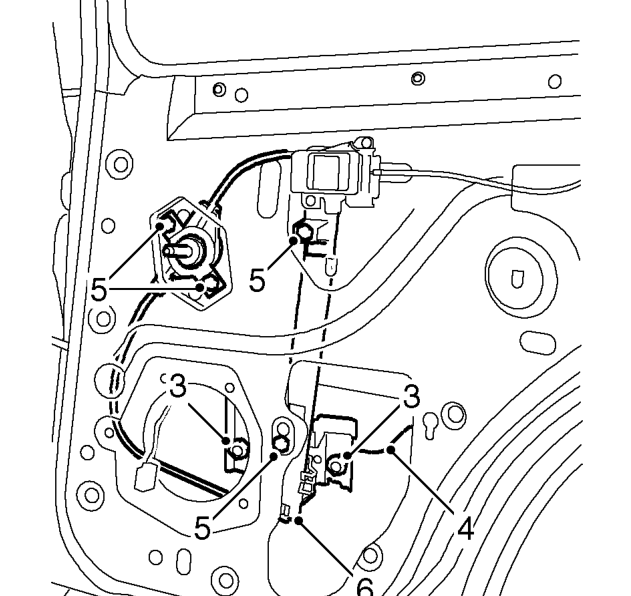

2. Lower glass to access clamp nuts.

3. Loosen 2 nuts securing glass to clamps.
4. Release glass from clamps, raise glass and secure in position with a suitable wedge.
5. Remove 4 bolts securing regulator to door.
6. Manoeuvre regulator into bottom of door and remove through aperture.

Refit

1. Position regulator in door and align to bolt holes, fit and tighten bolts.
2. Remove wedge and lower glass.
3. Locate glass to clamps and tighten clamp nuts to 8 Nm .
4. Raise and lower glass to ensure correct operation.
5. Fit water shedder. See this section.
