Latch - front door - 3 door

LATCH - FRONT DOOR - 3 DOOR

Service repair no - 76.37.12

Remove

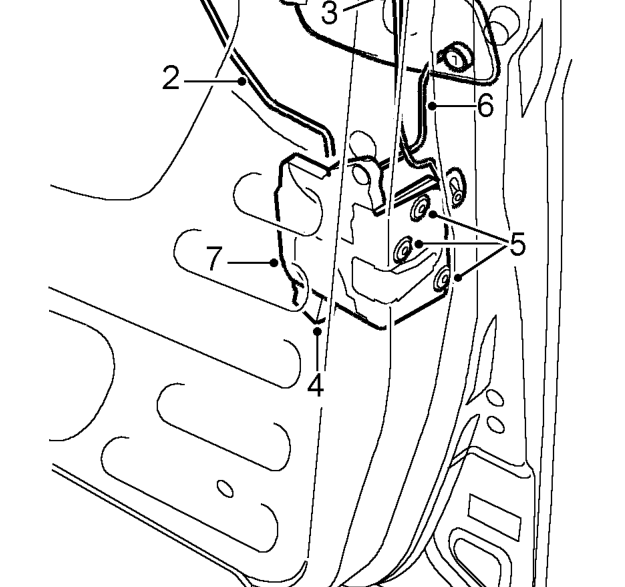

1. Remove upper water shedder. See this section.

2. Remove sill button lock rod from latch.
3. Release control rod from exterior handle.
4. Disconnect multiplug from latch.
5. Remove 3 Torx screws from latch
6. On driver’s door, release door lock barrel paddle from latch.

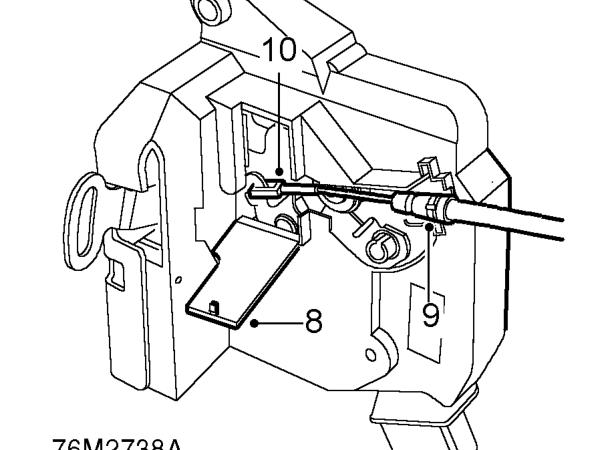

7. Remove latch from aperture.

8. Open latch security flap.
9. Release interior release cable clamp from latch.
10. Disengage interior release cable from latch.

Refit

1. Secure interior release cable to latch and close latch security flap.
2. Fit interior release cable clamp to latch.
3. Position latch to door. On driver’s door, align lock barrel paddle to latch.
4. Fit and tighten Torx screws securing latch.
5. Connect multiplug to latch.
6. Connect exterior handle control rod to latch.
7. Fit sill button lock rod to latch.
8. Check operation of latch.
9. Fit front door water shedder. See this section.
