HANDLE - EXTERIOR - FRONT DOOR

Service repair no - 76.58.07

Remove

3 door models

  1. Remove upper water shedder. See this section.

5 door models

  1. Remove front door water shedder. See this section.

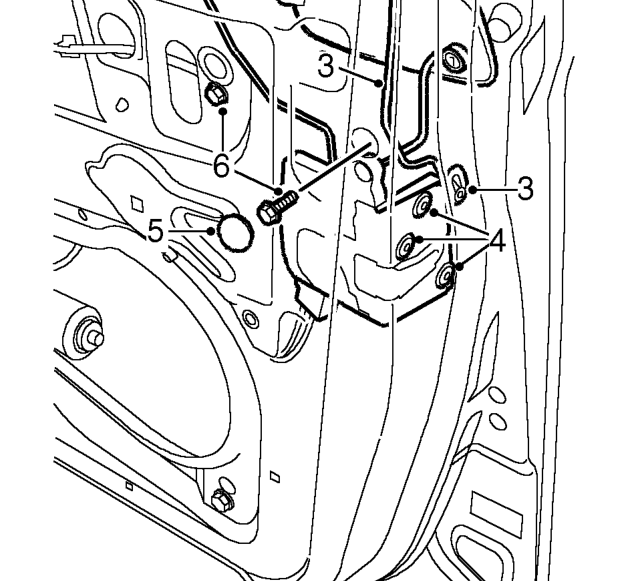

5 door models – Remove front door water shedder. See this section.

All models

  1. Release clip securing latch control rod to door latch, and release rod.

5 door models

  1. Remove Torx screws securing door latch, lower latch and release door lock paddle.

All models

  1. Remove grommet to access screw.
  2. Remove 2 screws securing door handle.

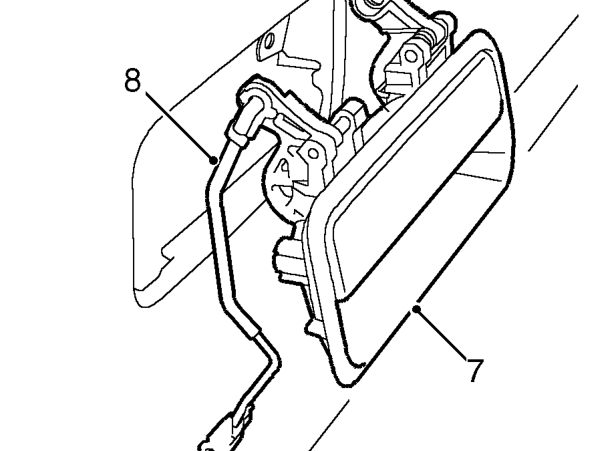

All models – Remove 2 screws securing door handle.
  1. Remove door handle.
  2. Remove latch control rod from handle.

Refit

  1. Fit door latch control rod to handle.
  2. Position handle to door, fit and tighten screws.
  3. Fit grommet.

5 door models

  1. Position latch, locate door lock paddle, fit and tighten Torx screws.

All models

  1. Connect control rod to door latch.
  2. Fit water shedder. See this section.
