CASING - TAIL DOOR

Service repair no - 76.34.10

Remove

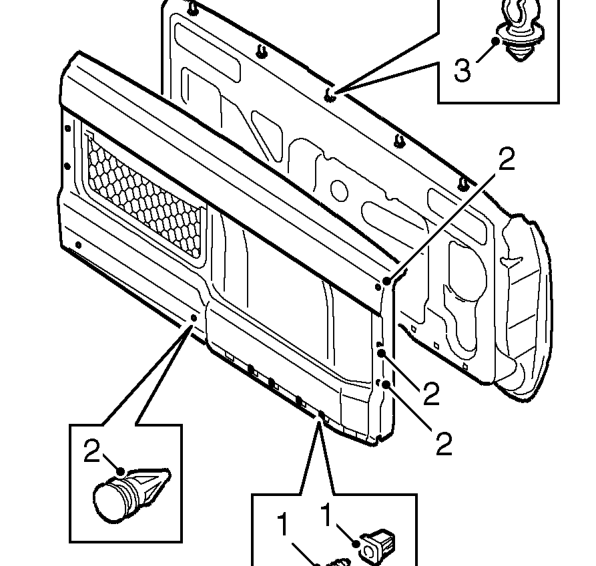

Casing - tail door – Service repair no - 76.34.10
  1. Remove 4 screws securing bottom of casing.
  2. Release 7 clips securing sides and bottom of casing.
  3. Release 5 clips securing top of casing.

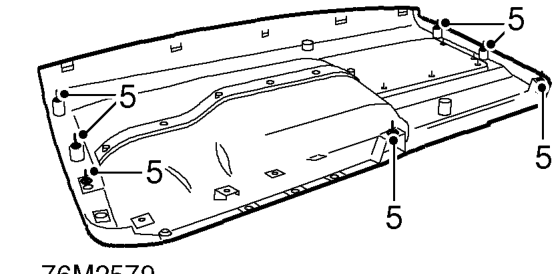

Casing - tail door – Release 5 clips securing top of casing.
  1. Remove casing.
  2. Remove 7 trim studs.

Refit

  1. Ensure trim studs are in position.
  2. Position casing and secure in top clips.
  3. Secure clips on side and bottom of casing.
  4. Fit screws to bottom of casing.
