WAIST SEAL - TAIL DOOR

Service repair no - 76.31.67

Remove

  1. Lower rear screen.

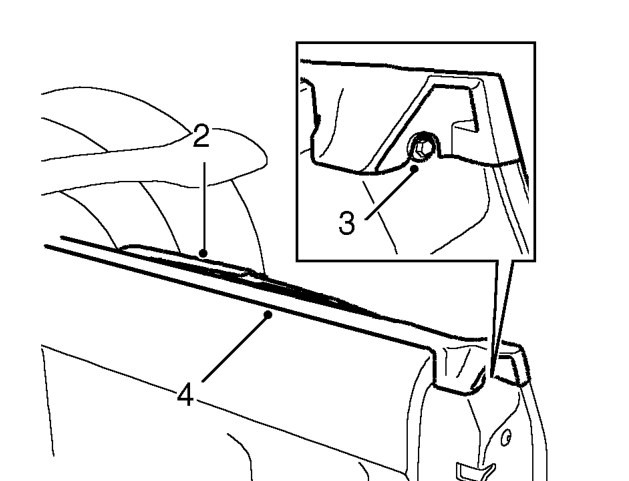

Waist seal - tail door – Lower rear screen.
  1. Raise wiper blade away from seal.
  2. Remove 2 screws from ends of seal.
  3. Release seal from door flanges.
  4. Remove waist seal.

Refit

  1. Position seal to door flanges.
  2. Fit and tighten screws.
  3. Lower wiper blade onto seal.
  4. Raise rear screen.
