BodyLatch - tail door

LATCH - TAIL DOOR

Service repair no - 76.37.16

Remove

  1. Remove tail door water shedder. See this section.

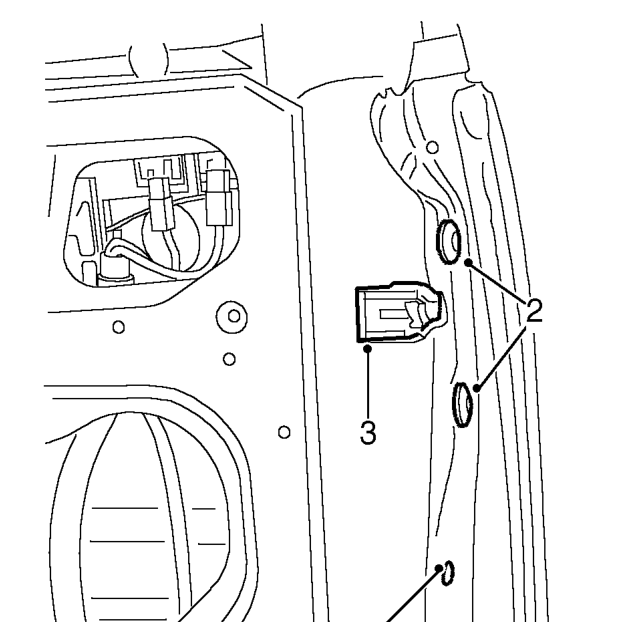

Latch - tail door – Remove tail door water shedder. See this section.
  1. Remove 4 screws securing door latch.
  2. Release door latch to access harness clips and multiplugs.

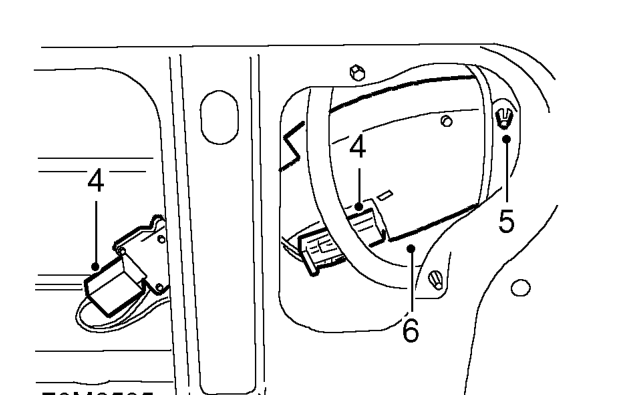

Latch - tail door – Release door latch to access harness clips and multiplugs.
  1. Disconnect 2 multiplugs from door latch.
  2. Release door harness clip from latch.
  3. Remove door latch.

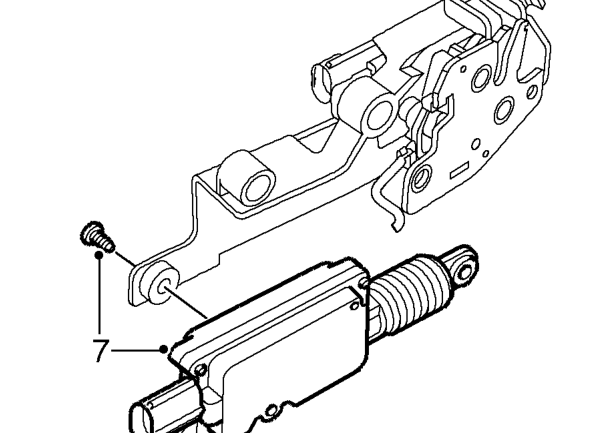

Latch - tail door – Remove door latch.
  1. Remove screw from solenoid motor and remove motor from latch.

Refit

  1. Position solenoid motor to latch, fit and tighten screw.
  2. Position door latch, connect multiplugs and harness clips.
  3. Locate door latch in position, fit and tighten screws.
  4. Fit water shedder. See this section.
