Water shedder - tail door

WATER SHEDDER - TAIL DOOR

Service repair no - 76.34.25

NOTE: Always replace a damaged water shedder.

Remove

1. Remove tail door casing. See this section.

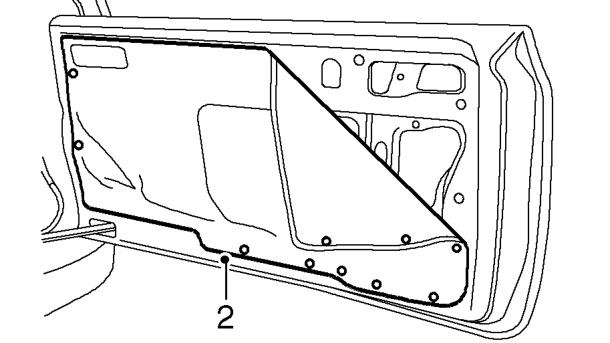

2. Release and discard water shedder.

Refit

1. Clean door contact area with white spirit.
2. Position NEW water shedder to door and seal in position, by applying hand pressure to centre bottom of shedder first then move out from this point in both directions applying an even pressure to the seal, smooth out any creases.

CAUTION: It is crucial that no creases are present along the base of the water shedder.

NOTE: To obtain an effective seal when fitting a new water shedder, ensure that the water shedder and door contact surface are at room temperature: 18°C to 30°C.

3. Fit tail door casing. See this section.
