Harness - interior lights

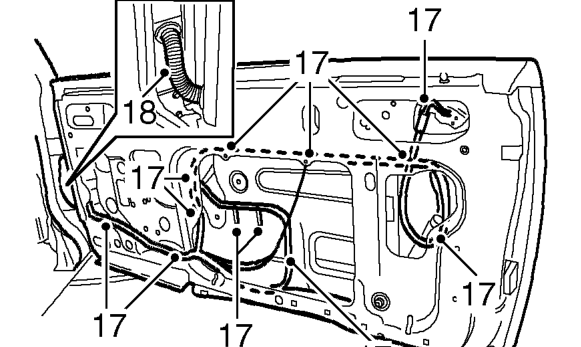

17. Release tail door harness from 13 retaining clips.
18. Release harness sheath from tail door and ’E’ post.
19. Remove harness from vehicle.

Refit

1. Position harness to vehicle and secure in retaining clips.
2. Secure harness sheath to tail door and ’E’ post.
3. Connect multiplugs and washer tube to main harness, secure multiplugs to body.
4. Connect multiplugs to window motor, wiper motor and door lock.
5. Position door latch, fit and tighten screws.
6. Connect Lucars to heated rear screen.
7. Position number plate lamp housing, locate seal and fit spacers.
8. Connect multiplug and Lucars to housing.
9. Fit housing and tighten nuts.
10. Connect washer tube behind spare wheel carrier.
11. Secure harness clips to spare wheel carrier, connect multiplug to CHMSL, fit CHMSL and secure with screws.
12. Fit spare wheel, fit and tighten nuts.
13. Fit water shedder. See BODY, Doors.
14. Fit lower trim casing. See BODY, Interior trim components.

HARNESS - INTERIOR LIGHTS

Service repair no - 86.70.44

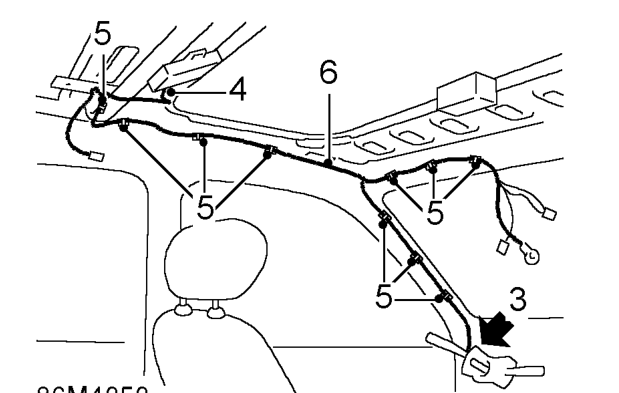

Remove

1. Remove fascia assembly. See BODY, Interior trim components.
2. Remove headlining. See BODY, Interior trim components.

3. Disconnect aerial connection and interior light harness from main harness.
4. Disconnect multiplug from volumetric sensor.
5. Release 10 harness clips.
6. Remove harness.

Refit

1. Position harness and secure harness clips.
2. Connect multiplug to volumetric sensor.
3. Connect multiplug and aerial connection to main harness.
4. Fit headlining. See BODY, Interior trim components.
5. Fit fascia assembly. See BODY, Interior trim components.
