Switch - exterior mirror

SWITCH - EXTERIOR MIRROR

Service repair no - 86.65.75

Remove

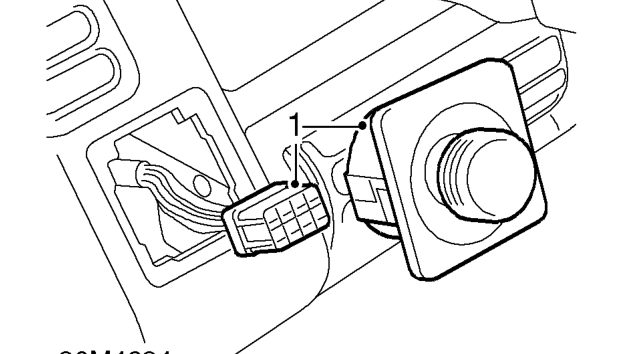

1. Release mirror switch from fascia and disconnect multiplug.

Refit

1. Position switch, connect multiplug and secure switch to fascia.

HARNESS - MAIN - 5 DOOR

Service repair no - 86.70.07

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
2. Remove complete carpet. See BODY, Interior trim components.
3. Remove windscreen washer reservoir. See WIPERS & WASHERS, Repairs.
4. Pull reservoir harness and washer tubes into engine bay.

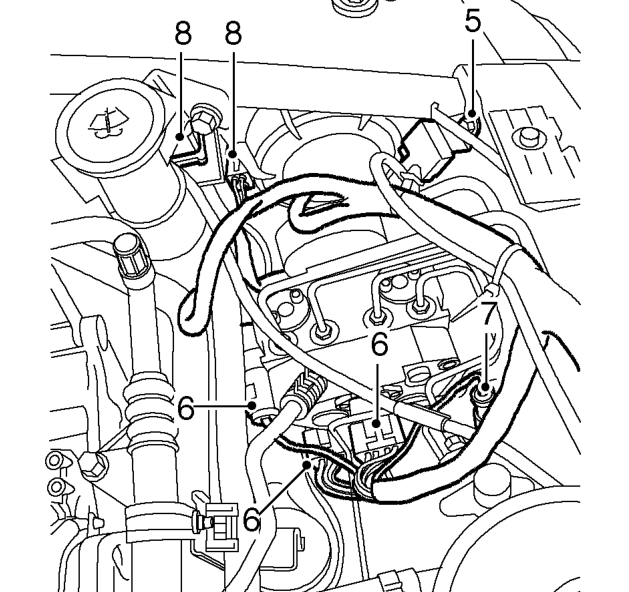

5. Remove nut and release earth header from RH inner wing.

Models with ABS:

6. Disconnect 3 multiplugs from ABS modulator.
7. Disconnect multiplug from front RH ABS speed sensor and release harness from clips.

All models:

8. Disconnect 2 multiplugs from RH headlamp and headlamp levelling motor.
