RESERVOIR - WINDSCREEN WASHER

Service repair no - 84.10.01

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Position container to collect any fluid loss.
Reservoir - windscreen washer – Position container to collect any fluid loss.

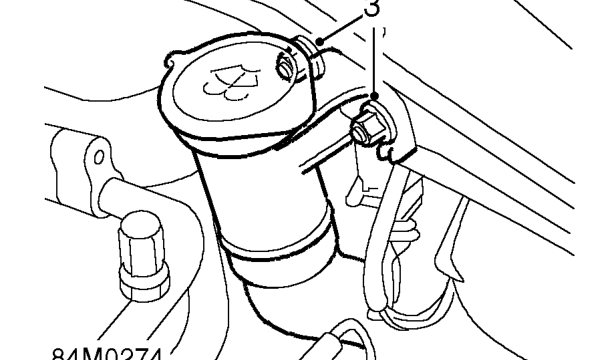

  1. Remove 2 nuts securing reservoir filler neck and remove filler neck.
Reservoir - windscreen washer – Remove 2 nuts securing reservoir filler neck and remove filler neck.

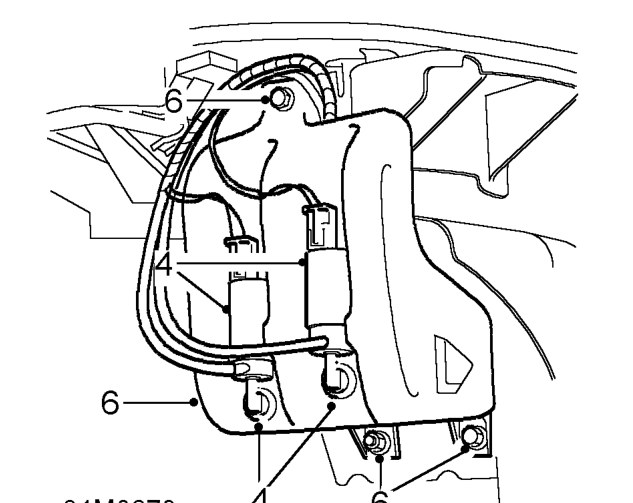

  1. Release both washer pumps from reservoir.
  2. Remove and discard pump sealing grommets.
  3. Remove 3 bolts securing washer reservoir and remove.

Refit

  1. Position reservoir and secure with bolts.
  2. Fit NEW pump sealing grommets to reservoir.
  3. Fit pumps to reservoir.
  4. Position filler neck and secure with nuts.
  5. Fit front bumper. See BODY, Exterior fittings.
