WASHER JET - WINDSCREEN

Service repair no - 84.10.08

Remove

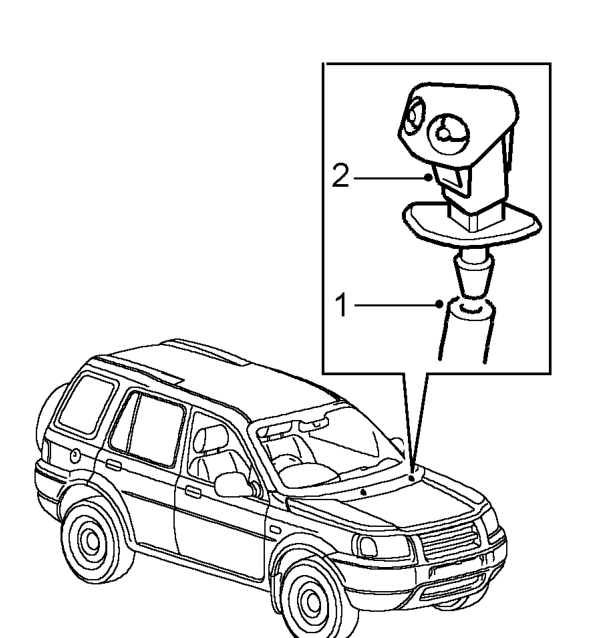

Washer jet - windscreen – Service repair no - 84.10.08
  1. Disconnect tube from washer jet.
  2. Depress plastic lugs and remove washer jet from bonnet.

Refit

  1. Fit washer jet to bonnet and connect tube.
  2. Adjust jet so the inside spray is to centre of the screen, and the outer spray is to the top of the screen.

PUMP - WINDSCREEN WASHER

Service repair no - 84.10.21

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Position container to catch windscreen washer fluid.

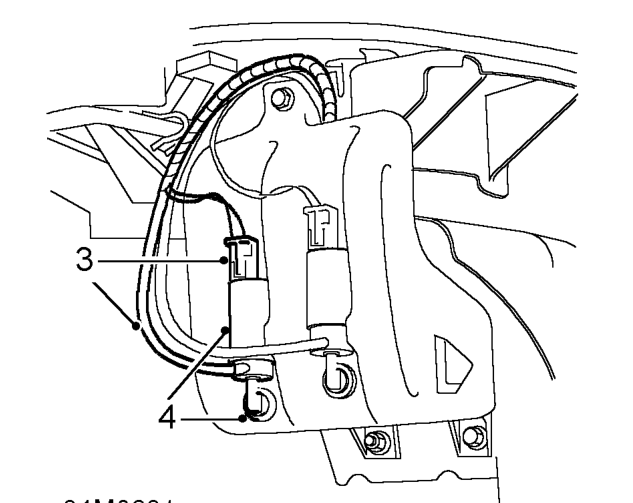

Pump - windscreen washer – Position container to catch windscreen washer fluid.
  1. Disconnect multiplug and hose from windscreen washer pump.
  2. Release pump from reservoir.
  3. Remove and discard pump sealing grommet.

Refit

  1. Fit NEW pump sealing grommet to reservoir.
  2. Fit pump to reservoir.
  3. Connect hose and multiplug to pump.
  4. Refit front bumper. See BODY, Exterior fittings.
