MOTOR AND LINKAGE - WINDSCREEN WIPER

Service repair no - 84.15.11

Remove

  1. Remove air intake moulding. See AIR CONDITIONING, Repairs.

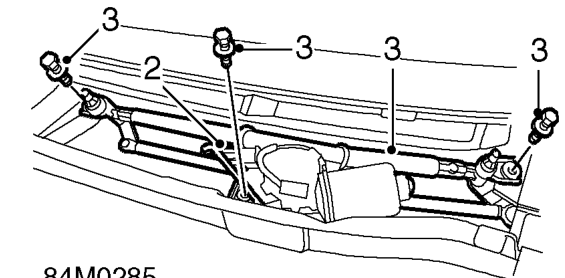

Motor and linkage - windscreen wiper – Remove air intake moulding. See AIR CONDITIONING, Repairs.
  1. Disconnect harness multiplug from wiper motor.
  2. Remove 3 bolts securing wiper motor and linkage. Remove motor and linkage.

Refit

  1. Fit motor and linkage assembly, fit and tighten bolts to 5 Nm.
  2. Connect harness multiplug to wiper motor.
  3. Fit air intake moulding. See AIR CONDITIONING, Repairs.

SWITCH - WINDSCREEN WASHER AND WIPER

Service repair no - 84.15.34

Remove

  1. Remove rotary coupler. See RESTRAINT SYSTEMS, Repairs.

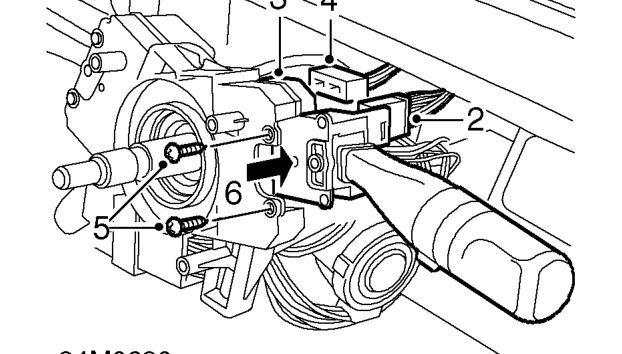

Switch - windscreen washer and wiper – Remove rotary coupler. See RESTRAINT SYSTEMS, Repairs.
  1. Disconnect multiplug from washer and wiper switch.
  2. Using a small flat blade release the multiplug connector from the switch base on steering column.
  3. Disconnect multiplug from the connector.
  4. Remove 2 screws from wiper switch.
  5. Depress retaining tag and remove switch.

Refit

  1. Fit washer and wiper switch assembly and secure with screws.
  2. Connect multiplugs to switch.
  3. Fit rotary coupler. See RESTRAINT SYSTEMS, Repairs.
