WIPER BLADE - REAR SCREEN

Service repair no - 84.35.02

Remove

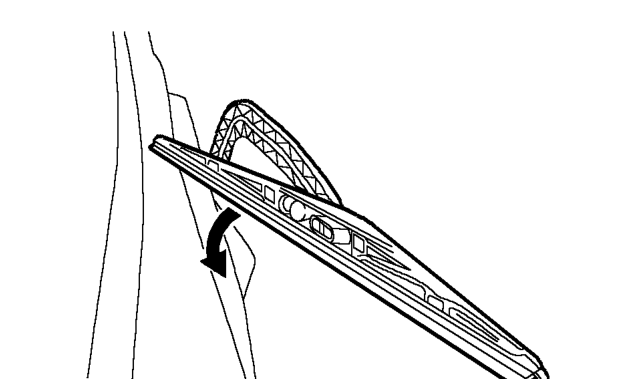

Wiper blade - rear screen – Service repair no - 84.35.02
  1. Release wiper arm from tail door glass.
  2. Remove wiper blade from arm.

Refit

  1. Position NEW blade to wiper arm.
  2. Push blade into engagement with arm and check blade is retained.

MOTOR - REAR SCREEN WIPER

Service repair no - 84.35.12

Remove

  1. Remove rear wiper arm. See this section.
  2. Remove tail door water shedder. See BODY, Doors.
Motor - rear screen wiper – Remove tail door water shedder. See BODY, Doors.

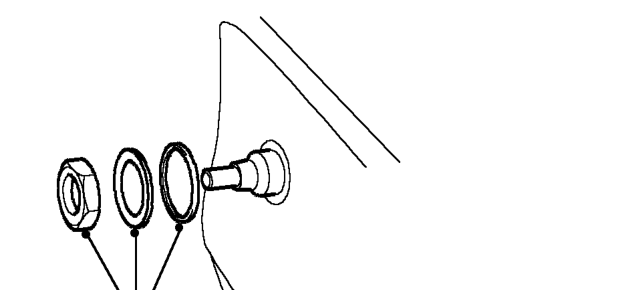

  1. Remove spindle nut, flat washer and discard rubber seal.
Motor - rear screen wiper – Remove spindle nut, flat washer and discard rubber seal.

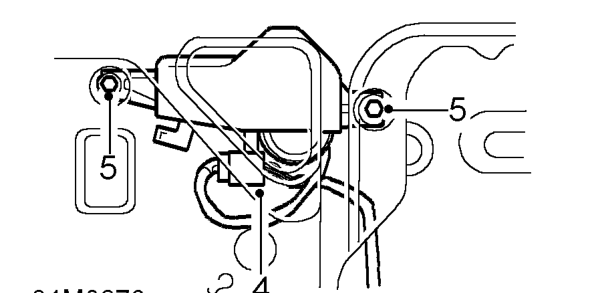

  1. Disconnect tailgate harness from wiper motor.
  2. Remove 2 bolts and remove wiper motor.
