PUMP - REAR SCREEN WASHER

Service repair no - 84.30.21

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Position container to catch windscreen washer fluid.

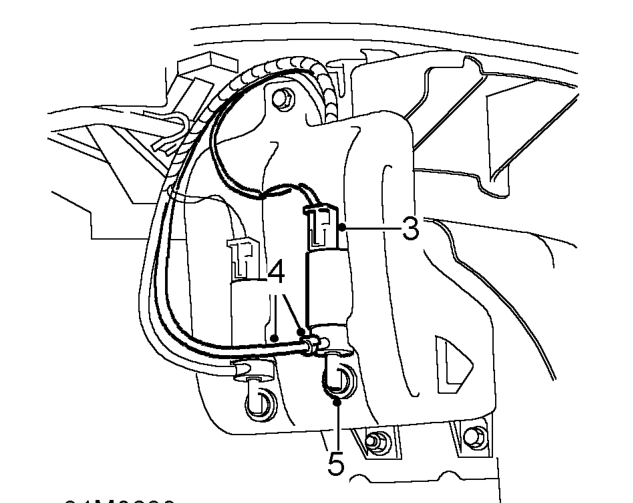

Pump - rear screen washer – Position container to catch windscreen washer fluid.
  1. Disconnect multiplug from washer pump.
  2. Release hose from pump.
  3. Remove pump from reservoir and discard pump sealing grommet.

Refit

  1. Fit NEW pump sealing grommet to reservoir.
  2. Fit pump to reservoir.
  3. Connect hose and multiplug to pump.
  4. Refit front bumper. See BODY, Exterior fittings.

WIPER ARM - REAR SCREEN

Service repair no - 84.35.01

Remove

  1. Remove wiper blade. See this section.
  2. Remove spare wheel mounting bracket. See BODY, Exterior fittings.

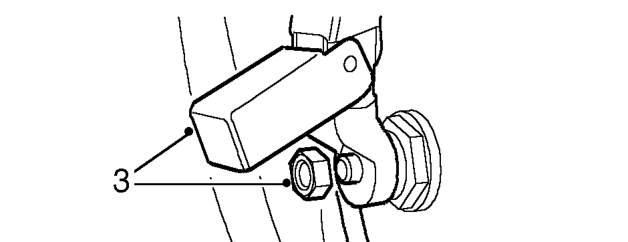

Wiper arm - rear screen – Remove spare wheel mounting bracket. See BODY, Exterior fittings.
  1. Raise nut cover on wiper arm and remove nut.
  2. Release washer jet tube and remove wiper arm. Do not carry out further dismantling if component is removed for access only.
  3. Release washer jet and tube from wiper arm.
  4. Position and secure washer tube and jet to wiper arm.

Refit

  1. Position wiper arm and connect washer tube.
  2. Set wiper arm with tip contacting joint line between waist seal and rear door. Fit and tighten wiper arm nut to 13 Nm.
  3. Fit wiper blade. See this section.
  4. Fit spare wheel mounting bracket. See BODY, Exterior fittings.
