Switch - rear screen washer and wiper

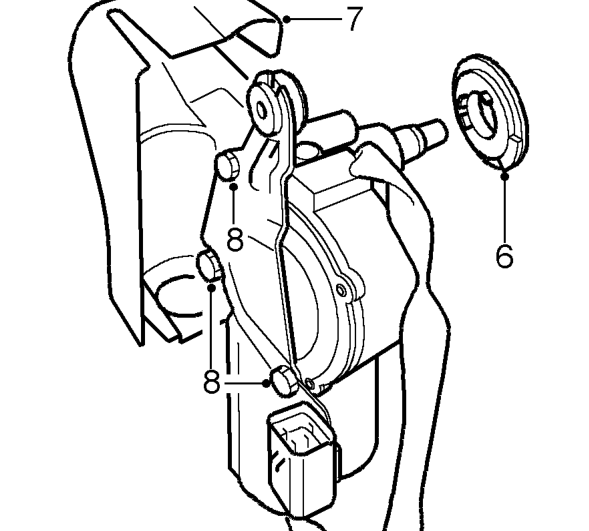

Do not carry out further dismantling if component is removed for access only.

6. Remove and discard spindle sealing washer.
7. Remove motor water shield.
8. Remove 3 bolts securing mounting plate to wiper motor.
9. Release multiplug and remove mounting plate.
10. Position mounting plate, tighten bolts and secure multiplug.
11. Fit motor water shield and NEW sealing washer to spindle.

Refit

1. Fit wiper motor and tighten bolts to 5 Nm.
2. Connect multiplug to wiper motor.
3. Fit NEW rubber seal to wiper motor spindle.
4. Fit flat washer and tighten spindle nut to 5 Nm.
5. Fit water shedder. See BODY, Doors.
6. Fit wiper arm. See this section.

SWITCH - REAR SCREEN WASHER AND WIPER

Service repair no - 84.35.34

Remove

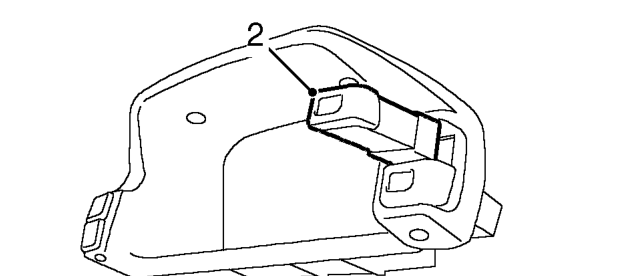

1. Remove instrument panel cowl. See INSTRUMENTS, Repairs.

2. Remove rear wiper switch from instrument panel cowl.

Refit

1. Fit switch to instrument panel cowl.
2. Fit instrument panel cowl. See INSTRUMENTS, Repairs.
