WIPER ARM - WINDSCREEN

Service repair no - 84.15.02

Remove

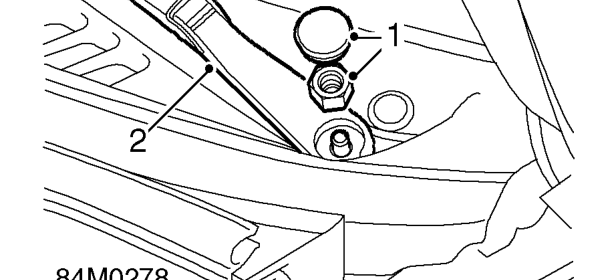

Wiper arm - windscreen – Service repair no - 84.15.02
  1. Remove nut cover on wiper arm and remove nut.
  2. Remove wiper arm from spindle. Do not carry out further dismantling if component is removed for access only.
  3. Remove wiper blade. See this section.
  4. Fit wiper blade to replacement wiper arm. See this section.

Refit

  1. Fit wiper arm to spindle, with tip of wiper blade aligned to screen marks.
  2. Fit nut and tighten to 18 Nm. Fit nut cover.

WIPER BLADE - WINDSCREEN

Service repair no - 84.15.06

Remove

  1. Lift wiper arm from screen.

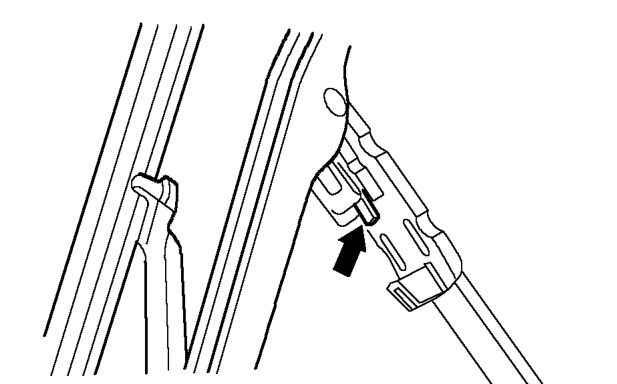

Wiper blade - windscreen – Lift wiper arm from screen.
  1. Press retaining lever.
  2. Slide blade down arm and withdraw.

Refit

  1. Position new blade to wiper arm.
  2. Push blade into engagement with arm, and check blade is retained.
  3. Lower wiper arm onto screen.
