InstrumentsClock

CLOCK

Service repair no - 88.15.07

Remove

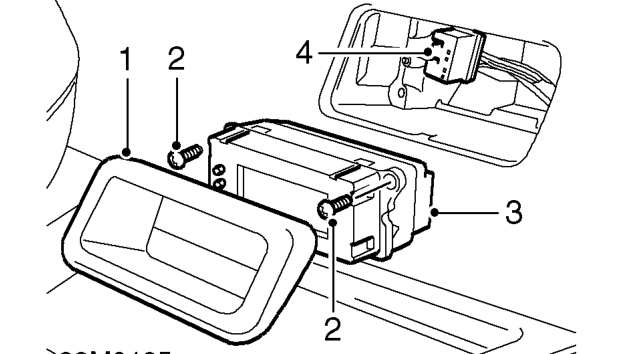

Clock – Service repair no - 88.15.07
  1. Remove clock finisher from fascia.
  2. Remove 2 screws securing clock to fascia.
  3. Release clock to gain access to multiplug.
  4. Disconnect multiplug and remove clock.

Refit

  1. Position clock to fascia and connect multiplug.
  2. Fit and tighten screws securing clock to fascia.
  3. Fit finisher to fascia.

PANEL - INSTRUMENT

Service repair no - 88.20.01

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
  2. Remove instrument bezel finisher. See this section.

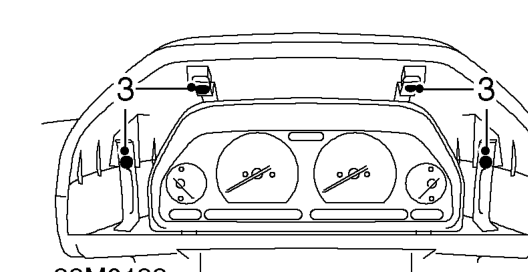

Panel - instrument – Remove instrument bezel finisher. See this section.
  1. Remove 4 screws and remove instrument panel upper cover.

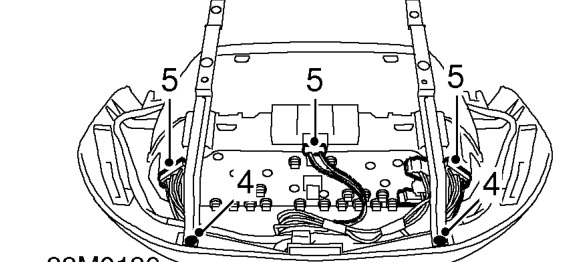

Panel - instrument – Remove 4 screws and remove instrument panel upper cover.
  1. Remove 4 screws securing instrument panel.
  2. Disconnect 4 multiplugs and remove instrument panel.

Refit

  1. Position instrument panel, fit and tighten screws.
  2. Connect multiplugs to instrument panel.
  3. Fit instrument panel upper cover and tighten screws.
  4. Fit instrument bezel finisher. See this section.
  5. Connect battery, earth lead last.
