TANK UNIT ASSEMBLY - DIESEL

Service repair no - 88.25.32

Remove

1. Disconnect battery earth lead.

WARNING: The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.

2. Open RH rear and tail doors.
3. Release and roll RH rear seat forward.

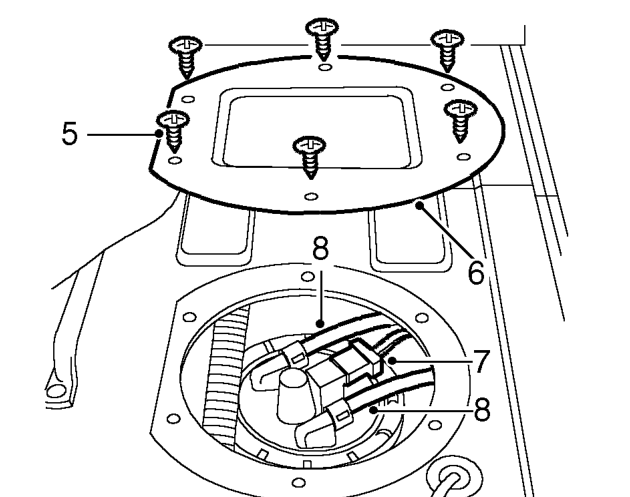

4. Raise luggage and passenger compartment carpets for access to panel.

5. Remove 6 screws securing access panel.
6. Remove access panel.
7. Disconnect multiplug from tank unit.
8. Disconnect fuel hoses from tank unit.

CAUTION: Plug the connections.

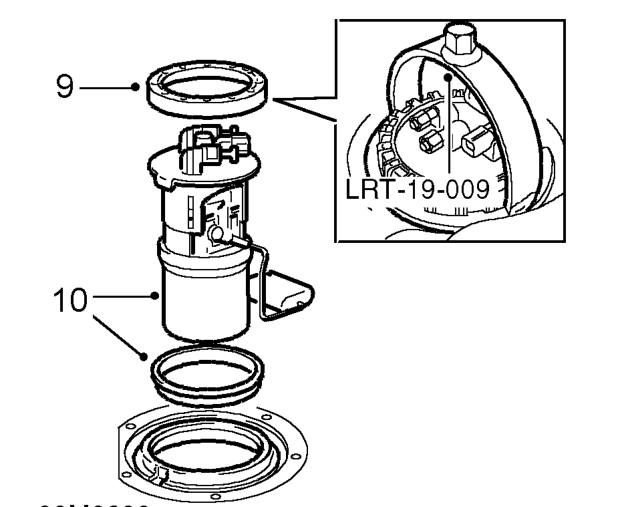

9. Use tool LRT 19-009 and remove locking ring from tank unit.
10. Remove tank unit and sealing ring.

Refit

1. Clean mating faces of tank unit and fuel tank.
2. Fit seal to tank unit.
3. Fit tank unit and secure with locking ring.
4. Connect multiplug to tank unit.
5. Connect fuel hoses to tank unit.
6. Fit access panel and secure with screws.
7. Reposition carpets.
8. Raise rear seat.
9. Close rear and tail doors.
10. Connect battery earth lead.
