InstrumentsFinisher - instrument bezel

FINISHER - INSTRUMENT BEZEL

Service repair no - 88.20.02

Remove

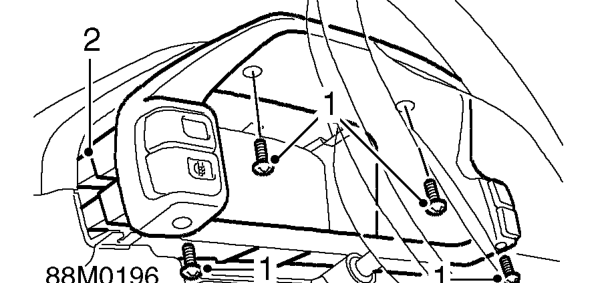

Finisher - instrument bezel – Service repair no - 88.20.02
  1. Remove 4 screws and release finisher.
  2. Disconnect multiplugs from switches and remove finisher. Do not carry out further dismantling if component is removed for access only.

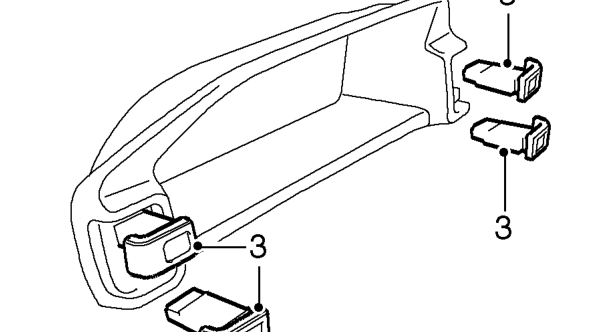

Finisher - instrument bezel – Disconnect multiplugs from switches and remove finisher. Do not carry out further dismantl
  1. Remove switches/switch blanks from finisher.
  2. Fit switches/switch blanks to replacement finisher.

Refit

  1. Position finisher and connect multiplugs to switches.
  2. Fit and tighten screws.

PRINTED CIRCUIT - INSTRUMENT PANEL

Service repair no - 88.20.19

Remove

  1. Remove instrument panel. See this section.

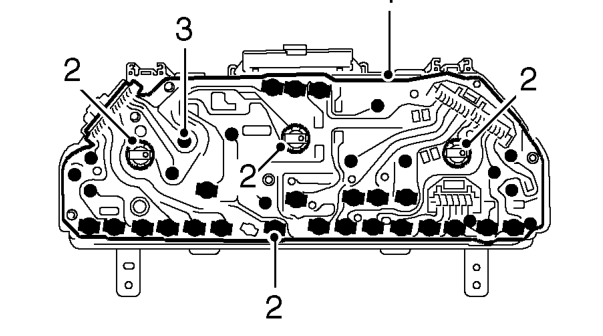

Printed circuit - instrument panel – Remove instrument panel. See this section.
  1. Remove 26 illumination and warning lamp bulb holders.
  2. Remove 13 screws securing printed circuit.
  3. Release and remove printed circuit.

Refit

  1. Fit and secure printed circuit to instrument pack, fit and tighten screws
  2. Fit bulb holders to instrument panel.
  3. Fit instrument panel. See this section.
