TRANSMITTER - COOLANT TEMPERATURE GAUGE - ’L’ SERIES

Service repair no - 88.25.20

Remove

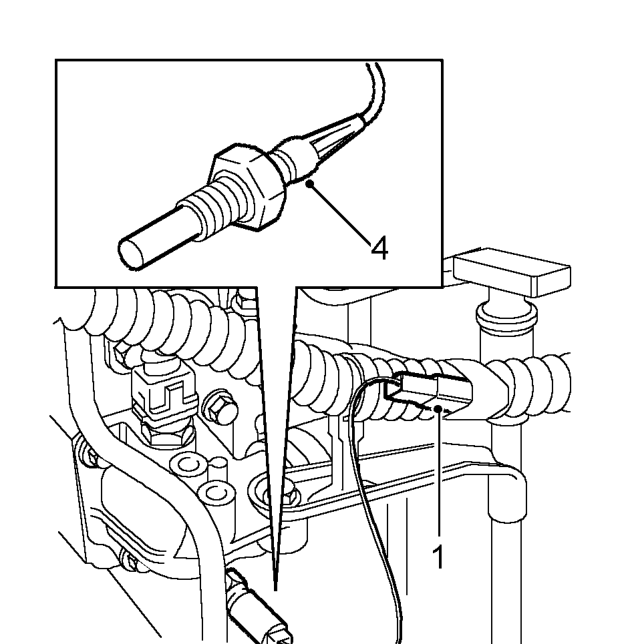

Transmitter - coolant temperature gauge - ’l’ series – Service repair no - 88.25.20
  1. Disconnect coolant temperature gauge transmitter lead from engine harness.

Models with air conditioning

  1. Remove alternator. See ELECTRICAL, Repairs.

All models

  1. Position drain tin to collect spillage.
  2. Remove coolant temperature gauge transmitter.

Refit

  1. Clean threads of coolant temperature gauge transmitter.
  2. Apply Loctite 577 to threads of coolant temperature gauge transmitter.
  3. Fit coolant temperature gauge transmitter and tighten to 10 Nm.
  4. Connect lead to engine harness
  5. Top-up coolant. See INFORMATION, Capacities, fluids and lubricants.

Models with air conditioning

  1. Fit alternator. See ELECTRICAL, Repairs.
