Sender - fuel gauge

SENDER - FUEL GAUGE

Service repair no - 88.25.32

Remove

1. Disconnect battery earth lead.

WARNING: The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.

2. Petrol Models: Remove fuel pump assembly. See FUEL DELIVERY SYSTEM, Repairs. Diesel Models: Remove tank unit assembly. See this section.

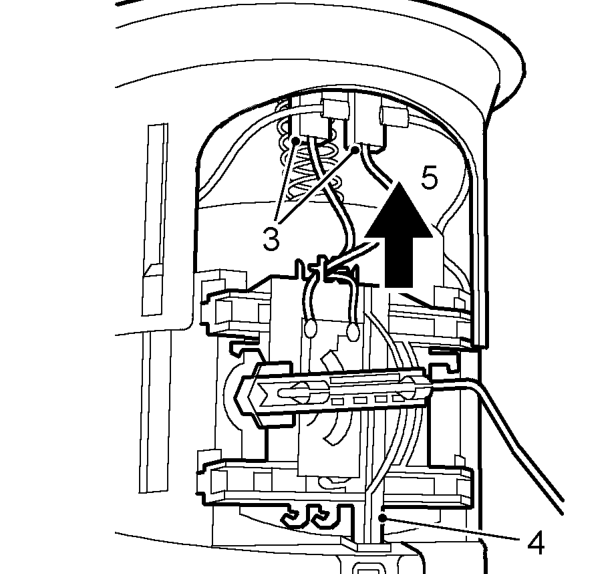

3. Disconnect 2 Lucar terminals from top of tank unit assembly.
4. Using a flat bladed screwdriver, carefully release sprag clip securing sender to tank unit.
5. Remove sender unit.

Refit

1. Position sender to location slots and engage sprag clip.

CAUTION: Ensure that each of the 4 location lugs on the sender are engaged with corresponding slots in the tank unit.

2. Connect Lucar terminals to top of tank unit assembly.
3. Petrol Models: Fit fuel pump assembly. See FUEL DELIVERY SYSTEM, Repairs. Diesel Models: Fit tank unit assembly. See this section.
4. Connect battery earth lead.
