InstrumentsSpeedometer

SPEEDOMETER

Service repair no - 88.30.01

Remove

  1. Remove instrument panel. See this section.

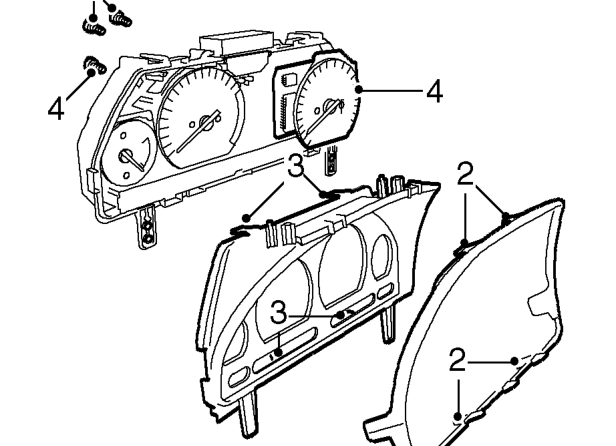

Speedometer – Remove instrument panel. See this section.
  1. Release 6 clips securing meter lens to cowl and remove meter lens.
  2. Release 4 clips securing cowl to case and remove cowl.
  3. Remove 3 screws and remove speedometer.

Refit

  1. Fit speedometer and secure with screws.
  2. Fit cowl to case.
  3. Fit meter lens to cowl.
  4. Fit instrument panel. See this section.

TACHOMETER

Service repair no - 88.30.21

Remove

  1. Remove instrument panel. See this section.

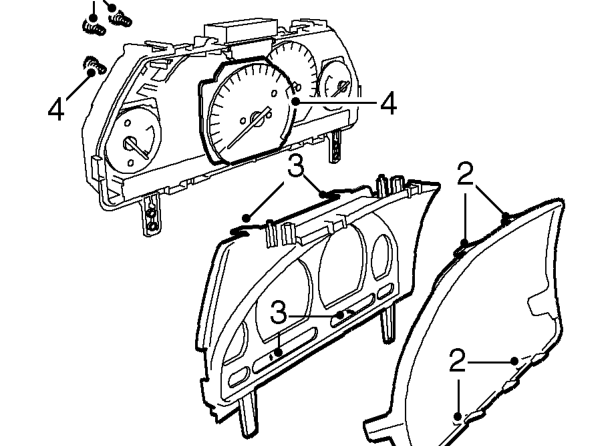

Tachometer – Remove instrument panel. See this section.
  1. Release 6 clips securing meter lens to cowl and remove meter lens.
  2. Release 4 clips securing cowl to case and remove cowl.
  3. Remove 3 screws and remove tachometer.

Refit

  1. Fit tachometer and secure with screws.
  2. Fit cowl to case.
  3. Fit meter lens to cowl.
  4. Fit instrument panel. See this section.
