Fuel contents gauge (Instruments)

Fuel contents gauge

The fuel contents gauge is controlled by a voltage signal from the float operated sender unit in the fuel tank. Movement of the sender unit float arm varies the electrical resistance across the sender unit, so the voltage of the control signal and the resultant deflection of the gauge pointer are directly related to the level of fuel in the tank.

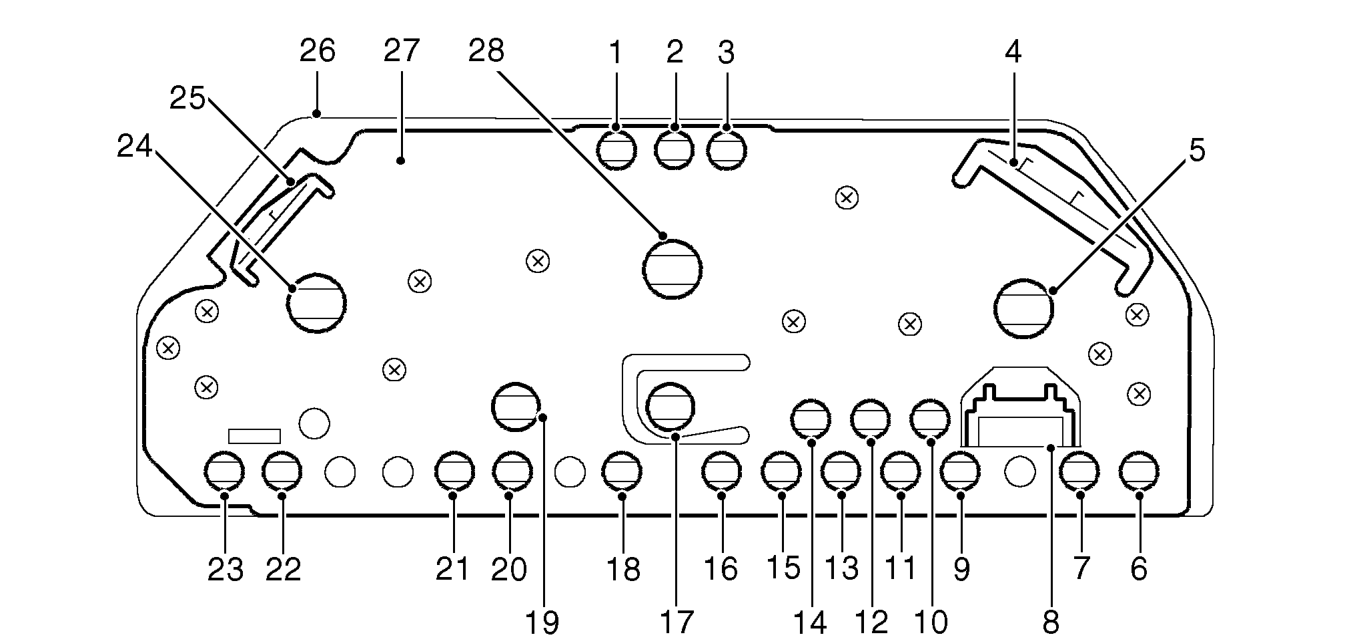

Rear view of instrument pack

1. Right direction indicator warning lamp
2. Main beam warning lamp
3. Left direction indicator warning lamp
4. Electrical socket
5. Background illumination lamp
6. Door open warning lamp
7. Hazard warning lamp
8. Electrical socket
9. Traction control warning lamp
10. Ignition/no charge warning lamp
11. Anti-lock braking warning lamp
12. SRS warning lamp
13. Hill descent control information warning lamp
14. Engine oil pressure warning lamp
15. Hill descent control fault warning lamp
16. Brake fault/handbrake on warning lamp
17. Alarm warning indicator
18. Glow plug warning lamp (diesel models only)
19. Odometer illumination lamp
20. MIL warning lamp (diesel models only)
21. Seat belt warning lamp (if fitted)
22. Trailer direction indicator/ hazard warning lamp
23. Rear fog guard warning lamp
24. Background illumination lamp
25. Electrical socket
26. Case
27. Print panel
28. Background illumination lamp
